TM

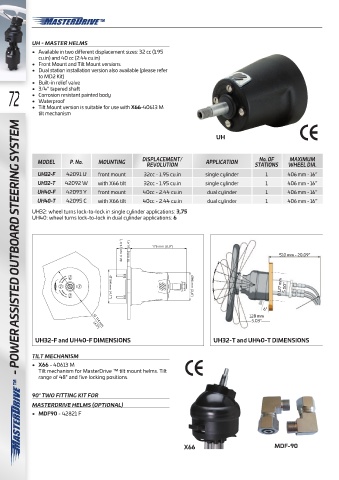

UH - MASTER HELMS
• Available in two different displacement sizes: 32 cc (1.95
cu.in) and 40 cc (2.44 cu.in)
• Front Mount and Tilt Mount versions
• Dual station installation version also available (please refer
to MD2 Kit)
• Built-in relief valve
72 • Corrosion resistant painted body
• 3/4” tapered shaft
• Waterproof
• Tilt Mount version is suitable for use with X66-40613 M
tilt mechanism
- POWER ASSISTED OUTBOARD STEERING SYSTEM

UH

MAXIMUM
No. OF
MODEL P. No. MOUNTING DISPLACEMENT/ APPLICATION STATIONS WHEEL DIA.
REVOLUTION
UH32-F 42091 U front mount 32cc - 1.95 cu.in single cylinder 1 406 mm - 16”
UH32-T 42092 W with X66 tilt 32cc - 1.95 cu.in single cylinder 1 406 mm - 16”
UH40-F 42093 Y front mount 40cc - 2.44 cu.in dual cylinder 1 406 mm - 16”
UH40-T 42095 C with X66 tilt 40cc - 2.44 cu.in dual cylinder 1 406 mm - 16”

UH32: wheel turns lock-to-lock in single cylinder applications: 3,75
UH40: wheel turns lock-to-lock in dual cylinder applications: 6

32.4 mm (1.3 “) 10 mm (0,4”) 175 mm (6,9”) 510 mm - 20.09”

Ø 127 mm 5.00”
Ø
Ø
86 mm (3,4”)
104 mm (4,1”)
6°
128 mm
5.03”
Ø 114 mm
(4,5”)
UH32-F and UH40-F DIMENSIONS UH32-T and UH40-T DIMENSIONS

TILT MECHANISM
• X66 - 40613 M
Tilt mechanism for MasterDrive ™ tilt mount helms. Tilt
range of 48° and five locking positions.
TM

90° TWO FITTING KIT FOR
MASTERDRIVE HELMS (OPTIONAL)
• MDF90 - 42821 F

X66 MDF-90
