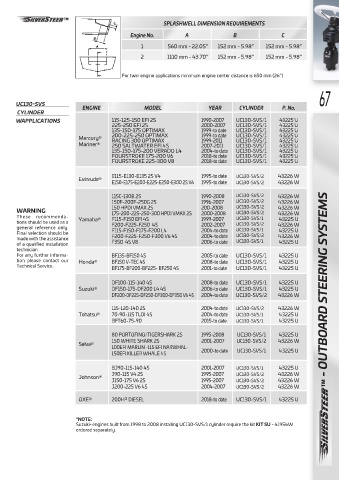

Page 69 - ULTRAFLEX Katalog 2021

SPLASHWELL DIMENSION REQUIREMENTS

Engine No. A B C
1 560 mm - 22.05” 152 mm - 5.98” 152 mm - 5.98”

2 1110 mm - 43.70” 152 mm - 5.98” 152 mm - 5.98”

For twin engine applications minimum engine center distance is 650 mm (26”)
67

UC130-SVS ENGINE MODEL YEAR CYLINDER P. No.
CYLINDER
WAPPLICATIONS 115-125-150 EFI 2S 1990-2007 UC130-SVS/1 43225 U
225-250 EFI 2S 2000-2007 UC130-SVS/1 43225 U
135-150-175 OPTIMAX 1999-to date UC130-SVS/1 43225 U
Mercury ® 200-225-250 OPTIMAX 1999-to date UC130-SVS/1 43225 U
RACING 300 OPTIMAX
1999-2011
UC130-SVS/1
43225 U
Mariner ® 250 SALTWATER EFI 4S 2007-2011 UC130-SVS/1 43225 U
135-150-175-200 VERADO L4 2004-to date UC130-SVS/1 43225 U
FOURSTROKE 175-200 V6 2018-to date UC130-SVS/1 43225 U
FOURSTROKE 225-300 V8 2018-to date UC130-SVS/1 43225 U
Evinrude ® E115-E130-E135 2S V4 1995-to date UC130-SVS/2 43226 W
E150-E175-E200-E225-E250-E300 2S V6 1995-to date UC130-SVS/2 43226 W

115C-130B 2S 1990-2008 UC130-SVS/2 43226 W
150F-200F-250G 2S 1996-2007 UC130-SVS/2 43226 W
WARNING 150 HPDI VMAX 2S 200-2008 UC130-SVS/2 43226 W
2000-2008
43226 W
UC130-SVS/2
175-200-225-250-300 HPDI VMAX 2S
These recommenda- F115-F150 EFI 4S 1999-2007 UC130-SVS/1 43225 U
tions should be used as a Yamaha ® F200-F225-F250 4S 2002-2007 UC130-SVS/2 43226 W
general reference only. F115-F150-F175-F200 L4 2004-to date UC130-SVS/1 43225 U
Final selection should be UC130-SVS/2
made with the assistance F200-F225-F250-F300 V6 4S 2004-to date UC130-SVS/1 43226 W
of a qualified installation F350 4S V8 2006-to date 43225 U
technician.
For any further informa- BF135-BF150 4S 2005-to date UC130-SVS/1 43225 U
tion please contact our Honda ® BF150 V-TEC 4S 2008-to date UC130-SVS/1 43225 U
Technical Service. BF175-BF200-BF225- BF250 4S 2001-to date UC130-SVS/1 43225 U
DF100-115-140 4S 2008-to date UC130-SVS/1 43225 U - OUTBOARD STEERING SYSTEMS
Suzuki ® DF150-175-DF200 L4 4S 2006-to date UC130-SVS/1 43225 U
DF200-DF225-DF250-DF300-DF350 V6 4S 2004-to date UC130-SVS/2 43226 W

115-120-140 2S 2004-to date UC130-SVS/2 43226 W
Tohatsu ® 70-90-115 TLDI 4S 2004-to date UC130-SVS/1 43225 U
BFT60-75-90 2015-to date UC130-SVS/1 43225 U
80 PORTOFINO/TIGERSHARK 2S 1995-2008 UC130-SVS/1 43225 U
Selva ® 150 WHITE SHARK 2S 2001-2007 UC130-SVS/2 43226 W
100EFI MARLIN -115 EFI NARWHAL-
150EFI KILLER WHALE 4S 2000-to date UC130-SVS/1 43225 U

BJ90-115-140 4S 2001-2007 UC130-SVS/1 43225 U
J90-115 V4 2S 1995-2007 UC130-SVS/2 43226 W
Johnson ® J150-175 V6 2S 1995-2007 UC130-SVS/2 43226 W
J200-225 V6 4S 2004-2007 UC130-SVS/2 43226 W

OXE ® 200HP DIESEL 2018-to date UC130-SVS/1 43225 U

*NOTE:
Suzuki ® engines built from 1998 to 2008 installing UC130-SVS/1 cylinder require the kit KIT SU - 41954W
ordered separately.
