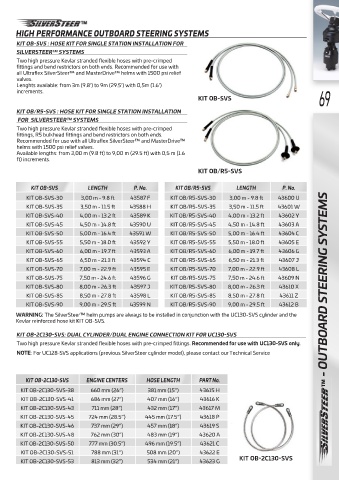

Page 71 - ULTRAFLEX Katalog 2021

-
HIGH PERFORMANCE OUTBOARD STEERING SYSTEMS

KIT OB-SVS : HOSE KIT FOR SINGLE STATION INSTALLATION FOR
SILVERSTEER™ SYSTEMS
Two high pressure Kevlar stranded flexible hoses with pre-crimped
fittings and bend restrictors on both ends. Recommended for use with
all Ultraflex SilverSteer™ and MasterDrive™ helms with 1500 psi relief
valves.
Lenghts available: from 3m (9.8’) to 9m (29.5’) with 0,5m (1.6’)
increments.
KIT OB-SVS 69

KIT OB/R5-SVS : HOSE KIT FOR SINGLE STATION INSTALLATION
FOR SILVERSTEER™ SYSTEMS
Two high pressure Kevlar stranded flexible hoses with pre-crimped
fittings, R5 bulkhead fittings and bend restrictors on both ends.
Recommended for use with all Ultraflex SilverSteer™ and MasterDrive™
helms with 1500 psi relief valves.
Available lengths: from 3,00 m (9.8 ft) to 9,00 m (29.5 ft) with 0,5 m (1.6
ft) increments.
KIT OB/R5-SVS

KIT OB-SVS LENGTH P. No. KIT OB/R5-SVS LENGTH P. No.
KIT OB-SVS-30 3,00 m - 9.8 ft 43587 F KIT OB/R5-SVS-30 3,00 m - 9.8 ft 43600 U
KIT OB-SVS-35 3,50 m - 11.5 ft 43588 H KIT OB/R5-SVS-35 3,50 m - 11.5 ft 43601 W
KIT OB-SVS-40 4,00 m - 13.2 ft 43589 K KIT OB/R5-SVS-40 4,00 m - 13.2 ft 43602 Y
KIT OB-SVS-45 4,50 m - 14.8 ft 43590 U KIT OB/R5-SVS-45 4,50 m - 14.8 ft 43603 A
KIT OB-SVS-50 5,00 m - 16.4 ft 43591 W KIT OB/R5-SVS-50 5,00 m - 16.4 ft 43604 C
KIT OB-SVS-55 5,50 m - 18.0 ft 43592 Y KIT OB/R5-SVS-55 5,50 m - 18.0 ft 43605 E
KIT OB-SVS-60 6,00 m - 19.7 ft 43593 A KIT OB/R5-SVS-60 6,00 m - 19.7 ft 43606 G
KIT OB-SVS-65 6,50 m - 21.3 ft 43594 C KIT OB/R5-SVS-65 6,50 m - 21.3 ft 43607 J
KIT OB-SVS-70 7,00 m - 22.9 ft 43595 E KIT OB/R5-SVS-70 7,00 m - 22.9 ft 43608 L
KIT OB-SVS-75 7,50 m - 24.6 ft 43596 G KIT OB/R5-SVS-75 7,50 m - 24.6 ft 43609 N
KIT OB-SVS-80 8,00 m - 26.3 ft 43597 J KIT OB/R5-SVS-80 8,00 m - 26.3 ft 43610 X - OUTBOARD STEERING SYSTEMS
KIT OB-SVS-85 8,50 m - 27.8 ft 43598 L KIT OB/R5-SVS-85 8,50 m - 27.8 ft 43611 Z
KIT OB-SVS-90 9,00 m - 29.5 ft 43599 N KIT OB/R5-SVS-90 9,00 m - 29.5 ft 43612 B
WARNING: The SilverSteer™ helm pumps are always to be installed in conjunction with the UC130-SVS cylinder and the
Kevlar reinforced hose kit KIT OB-SVS.
KIT OB-2C130-SVS: DUAL CYLINDER/DUAL ENGINE CONNECTION KIT FOR UC130-SVS
Two high pressure Kevlar stranded flexible hoses with pre-crimped fittings. Recommended for use with UC130-SVS only.
NOTE: For UC128-SVS applications (previous SilverSteer cylinder model), please contact our Technical Service

KIT OB-2C130-SVS ENGINE CENTERS HOSE LENGTH PART No.

KIT OB-2C130-SVS-38 660 mm (26”) 381 mm (15”) 43615 H
KIT OB-2C130-SVS-41 686 mm (27”) 407 mm (16”) 43616 K
KIT OB-2C130-SVS-43 711 mm (28”) 432 mm (17”) 43617 M
KIT OB-2C130-SVS-45 724 mm (28.5”) 445 mm (17.5”) 43618 P
KIT OB-2C130-SVS-46 737 mm (29”) 457 mm (18”) 43619 S
KIT OB-2C130-SVS-48 762 mm (30”) 483 mm (19”) 43620 A
KIT OB-2C130-SVS-50 777 mm (30.5”) 496 mm (19.5”) 43621 C
KIT OB-2C130-SVS-51 788 mm (31”) 508 mm (20”) 43622 E
KIT OB-2C130-SVS-53 813 mm (32”) 534 mm (21”) 43623 G KIT OB-2C130-SVS
