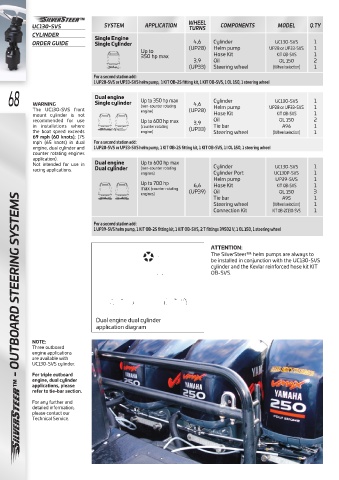

UC130-SVS SYSTEM APPLICATION WHEEL COMPONENTS MODEL Q.TY
TURNS
CYLINDER Single Engine
ORDER GUIDE Single Cylinder 4,6 Cylinder UC130-SVS 1
Up to (UP28) Helm pump UP28 or UP33-SVS 1
350 hp max Hose Kit KIT OB-SVS 1
3,9 Oil OL 150 2
(UP33) Steering wheel (Wheel selection) 1
For a second station add:
1 UP28-SVS or UP33-SVS helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB-SVS, 1 OL 150, 1 steering wheel
68 Dual engine Up to 350 hp max Cylinder UC130-SVS 1

4,6
WARNING
The UC130-SVS front Single cylinder (non-counter rotating (UP28) Helm pump UP28 or UP33-SVS 1
engine)
mount cylinder is not Hose Kit KIT OB-SVS 1
recommended for use Up to 600 hp max 3,9 Oil OL 150 2
in installations where (counter rotating Tie bar A96 1
the boat speed exceeds engine) (UP33) Steering wheel (Wheel selection) 1
69 mph (60 knots); (75
mph (65 knots) in dual For a second station add:
engine, dual cylinder and 1 UP28-SVS or UP33-SVS helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB-SVS, 1 l OL 150, 1 steering wheel
counter rotating engines
application).
Not intended for use in Dual engine Up to 600 hp max Cylinder UC130-SVS 1
racing applications. Dual cylinder (non-counter rotating
engines) Cylinder Port UC130P-SVS 1
Helm pump UP39-SVS 1
Up to 700 hp 6,6 Hose Kit KIT OB-SVS 1
max (counter rotating
engines) (UP39) Oil OL 150 3
- OUTBOARD STEERING SYSTEMS
Tie bar A95 1
Steering wheel (Wheel selection) 1
Connection Kit KIT OB-2C130-SVS 1
For a second station add:
1 UP39-SVS helm pump, 1 KIT OB-2S fitting kit, 1 KIT OB-SVS, 2 T fittings 39502 V, 1 OL 150, 1 steering wheel

ATTENTION:
The SilverSteer™ helm pumps are always to
be installed in conjunction with the UC130-SVS
cylinder and the Kevlar reinforced hose kit KIT
OB-SVS.

Dual engine dual cylinder
application diagram

NOTE:
Three outboard
engine applications
are available with
UC130-SVS cylinder.
For triple outboard
engine, dual cylinder
applications, please
refer to tie-bar section.
For any further and
detailed information,
please contact our
Technical Service.
