TM

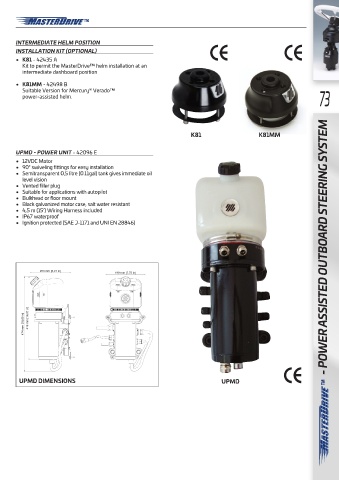

       INTERMEDIATE HELM POSITION
       INSTALLATION KIT (OPTIONAL)
       •  K81 - 42435 A
         Kit to permit the MasterDrive™ helm installation at an
         intermediate dashboard position

       •  K81MM - 42498 B
         Suitable Version for Mercury  Verado™
                                ®
         power-assisted helm.                                                                                    73





                                                                    K81                     K81MM



       UPMD - POWER UNIT - 42096 E
       •  12VDC Motor
       •  90° swiveling fittings for easy installation
       •  Semitransparent 0,5 litre (0.11gal) tank gives immediate oil
         level vision
       •  Vented filler plug
       •  Suitable for applications with autopilot
       •  Bulkhead or floor mount
       •  Black galvanized motor case, salt water resistant
       •  4,5 m (15’) Wiring Harness included
       •  IP67 waterproof
       •  Ignition protected (SAE J-1171 and UNI EN 28846)









               203 mm [8,01 in]                                                                                      - POWER ASSISTED OUTBOARD STEERING SYSTEM
                                         198 mm [7,78 in]






         474 mm [18,65 in]  416 mm [16,37 in]












        UPMD DIMENSIONS                                                        UPMD                                TM
