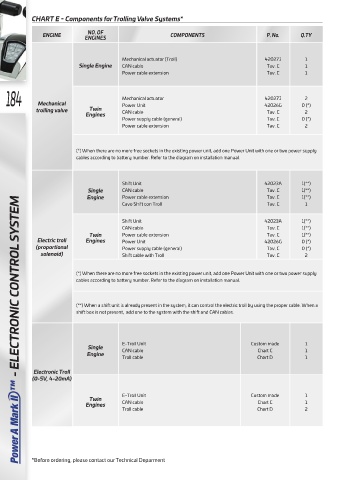

CHART E - Components for Trolling Valve Systems*

NO. OF
ENGINE ENGINES COMPONENTS P. No. Q.TY

Mechanical actuator (Troll) 42027J 1
Single Engine CAN cable Tav. C 1
Power cable extension Tav. C 1

184 Mechanical actuator 42027J 2

Mechanical
trolling valve Twin Power Unit 42026G 0 (*)
Tav. C
2
CAN cable
Engines
Power supply cable (general) Tav. C 0 (*)
Power cable extension Tav. C 2

(*) When there are no more free sockets in the existing power unit, add one Power Unit with one or two power supply
cables according to battery number. Refer to the diagram on installation manual.

Shift Unit 42023A 1(**)
Single CAN cable Tav. C 1(**)
Engine Power cable extension Tav. C 1(**)
- ELECTRONIC CONTROL SYSTEM
Cavo Shift con Troll Tav. C 1

Shift Unit 42023A 1(**)
CAN cable Tav. C 1(**)
Twin Power cable extension Tav. C 1(**)
Electric troll Engines Power Unit 42026G 0 (*)
(proportional Power supply cable (general) Tav. C 0 (*)
solenoid) Shift cable with Troll Tav. C 2

(*) When there are no more free sockets in the existing power unit, add one Power Unit with one or two power supply
cables according to battery number. Refer to the diagram on installation manual.

(**) When a shift unit is already present in the system, it can control the electric troll by using the proper cable. When a
shift box is not present, add one to the system with the shift and CAN cables.

E-Troll Unit Custom made 1
Single
Engine CAN cable Chart C 1
Troll cable Chart D 1

Electronic Troll
(0-5V, 4-20mA)

E-Troll Unit Custom made 1
Twin
Engines CAN cable Chart C 1
Troll cable Chart D 2

*Before ordering, please contact our Technical Deparment
