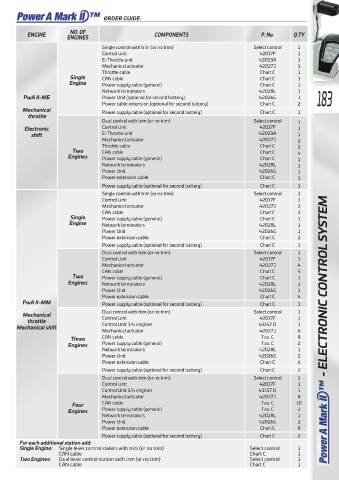

Page 185 - ULTRAFLEX Katalog 2021

ORDER GUIDE:

NO. OF
ENGINE ENGINES COMPONENTS P. No. Q.TY

Single control with trim (or no trim) Select control 1
Control Unit 42017F 1
E-Throttle unit 42023A 1
Mechanical actuator 42027J 1
Throttle cable Chart C 1
Single CAN cable Chart C 3
Engine Power supply cable (general) Chart C 1
Network terminators 42028L 1
PwA II-ME Power Unit (optional for second battery) 42026G 1 183
Power cable extension (optional for second battery) Chart C 2
Mechanical Power supply cable (optional for second battery) Chart C 1
throttle
Dual control with trim (or no trim) Select control 1
Electronic Control Unit 42017F 1
shift E-Throttle unit 42023A 1
Mechanical actuator 42027J 2
Throttle cable Chart C 2
Two CAN cable Chart C 4
Engines Power supply cable (general) Chart C 1
Network terminators 42028L 1
Power Unit 42026G 1
Power extension cable Chart C 3
Power supply cable (optional for second battery) Chart C 1
Single control with trim (or no trim) Select control 1
Control Unit 42017F 1
Mechanical actuator 42027J 2
CAN cable Chart C 3
Single Power supply cable (general) Chart C 1
Engine Network terminators 42028L 1
Power Unit 42026G 1
Power extension cable Chart C 2
Power supply cable (optional for second battery) Chart C 1
Dual control with trim (or no trim) Select control 1
Control Unit 42017F 1
Mechanical actuator 42027J 4
CAN cable Chart C 5
Two Power supply cable (general) Chart C 1
Engines Network terminators 42028L 1
Power Unit 42026G 1 - ELECTRONIC CONTROL SYSTEM
Power extension cable Chart C 4
PwA II-MM Power supply cable (optional for second battery) Chart C 1

Mechanical Dual control with trim (or no trim) Select control 1 1
Control Unit
42017F
throttle Control Unit 3/4 engines 43157 D 1
Mechanical shift
Mechanical actuator 42027J 6
Three CAN cable Tav. C 8
Engines Power supply cable (general) Tav. C 2
Network terminators 42028L 1
Power Unit 42026G 2
Power extension cable Chart C 6
Power supply cable (optional for second battery) Chart C 2
Dual control with trim (or no trim) Select control 1
Control Unit 42017F 1
Control Unit 3/4 engines 43157 D 1
Mechanical actuator 42027J 8
Four CAN cable Tav. C 10
Engines Power supply cable (general) Tav. C 2
Network terminators 42028L 1
Power Unit 42026G 2
Power extension cable Chart C 8
Power supply cable (optional for second battery) Chart C 2
For each additional station add:
Single Engine: Single lever control station with trim (or no trim) Select control 1
CAN cable Chart C 1
Two Engines: Dual lever control station with trim (or no trim) Select control 1
CAN cable Chart C 1
