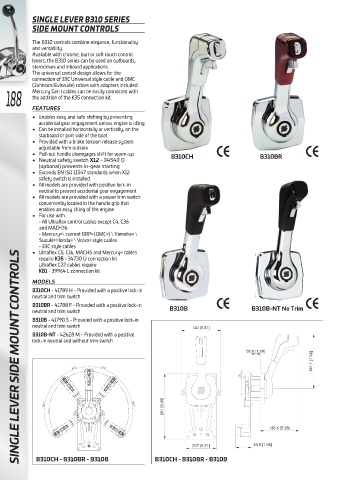

SINGLE LEVER B310 SERIES
SIDE MOUNT CONTROLS

The B310 controls combine elegance, functionality
and versatility.
Available with chrome, burl or soft touch control
levers, the B310 series can be used on outboards,
sterndrives and inboard applications.
The universal control design allows for the
connection of 33C Universal style cable and OMC
(Johnson/Evinrude) cables with adapters included.
188 Mercury Gen I cables can be easily connected with
the addition of the K35 connection kit.

FEATURES
• Enables easy and safe shifting by preventing
accidental gear engagement unless engine is idling
• Can be installed horizontally or vertically, on the
starboard or port side of the boat
• Provided with a brake tension release system
adjustable from outside
• Pull-out handle disengages shift for warm-up B310CH B310BR
• Neutral safety switch X12 - 34543 Q
(optional) prevents in-gear starting
• Exceeds EN ISO 11547 standards when X12
safety switch is installed
• All models are provided with positive lock-in
neutral to prevent accidental gear engagement
• All models are provided with a power trim switch
conveniently located in the handle grip that
enables an easy tilting of the engine
• For use with:
- All Ultraflex control cables except C4, C36
and MACH36
- Mercury ®\ current BRP ® (OMC ®) \ Yamaha ® \
Suzuki ® Honda ® \ Volvo ® style cables
- 33C style cables
• Ultraflex C5, C16, MACH5 and Mercury ® cables
SINGLE LEVER SIDE MOUNT CONTROLS
require K35 - 34730 U connection kit
Ultraflex C22 cables require
KB1 - 39964 L connection kit

MODELS
B310CH - 41789 H - Provided with a positive lock-in
neutral and trim switch
B310BR - 41788 F - Provided with a positive lock-in
neutral and trim switch B310B B310B-NT No Trim
B310B - 41790 S - Provided with a positive lock-in
neutral and trim switch 140 [5.51]
B310B-NT - 42628 M - Provided with a positive
lock-in neutral and without trim switch

32.6 [1.28]
191.1 [7.52]

231 [9.09]

136.6 [5.38]

107 [4.21] 49.5 [1.95]

B310CH - B310BR - B310B B310CH - B310BR - B310B
