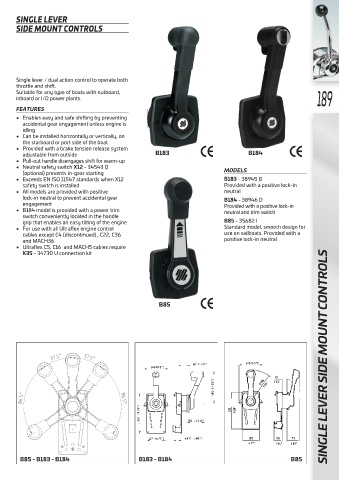

SINGLE LEVER
       SIDE MOUNT CONTROLS










       Single lever / dual action control to operate both
       throttle and shift.
       Suitable for any type of boats with outboard,
       inboard or I/O power plants.                                                                             189
       FEATURES
       •  Enables easy and safe shifting by preventing
         accidental gear engagement unless engine is
         idling
       •  Can be installed horizontally or vertically, on
         the starboard or port side of the boat
       •  Provided with a brake tension release system
         adjustable from outside                        B183                            B184
       •  Pull-out handle disengages shift for warm-up
       •  Neutral safety switch X12 - 34543 Q
         (optional) prevents in-gear starting                                   MODELS
       •  Exceeds EN ISO 11547 standards when X12                               B183 - 38945 B
         safety switch is installed                                             Provided with a positive lock-in
       •  All models are provided with positive                                 neutral
         lock-in neutral to prevent accidental gear                             B184 - 38946 D
         engagement                                                             Provided with a positive lock-in
       •  B184 model is provided with a power trim                              neutral and trim switch
         switch conveniently located in the handle
         grip that enables an easy tilting of the engine                        B85 - 35682 I
       •  For use with all Ultraflex engine control                             Standard model, smooth design for
         cables except C4 (discontinued) , C22, C36                             use on sailboats. Provided with a
         and MACH36.                                                            positive lock-in neutral
       •  Ultraflex C5, C16  and MACH5 cables require
         K35 - 34730 U connection kit









                                                         B85                                                        SINGLE LEVER SIDE MOUNT CONTROLS
































        B85 - B183 - B184                         B183 - B184                                          B85
