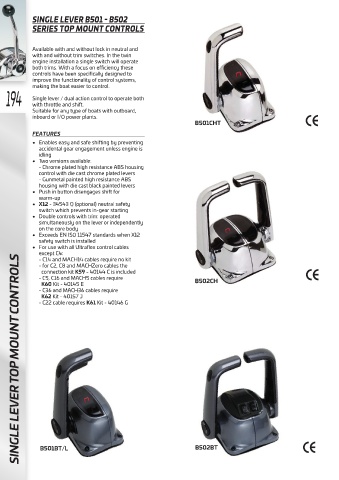

SINGLE LEVER B501 - B502
SERIES TOP MOUNT CONTROLS

Available with and without lock in neutral and
with and without trim switches. In the twin
engine installation a single switch will operate
both trims. With a focus on efficiency these
controls have been specifically designed to
improve the functionality of control systems,
making the boat easier to control.
194 Single lever / dual action control to operate both

with throttle and shift.
Suitable for any type of boats with outboard,
inboard or I/O power plants.
B501CHT
FEATURES
• Enables easy and safe shifting by preventing
accidental gear engagement unless engine is
idling
• Two versions available:
- Chrome plated high resistance ABS housing
control with die cast chrome plated levers
- Gunmetal painted high resistance ABS
housing with die cast black painted levers
• Push in button disengages shift for
warm-up
• X12 - 34543 Q (optional) neutral safety
switch which prevents in-gear starting
• Double controls with trim: operated
simultaneously on the lever or independently
on the core body
• Exceeds EN ISO 11547 standards when X12
safety switch is installed
• For use with all Ultraflex control cables
except C4:
SINGLE LEVER TOP MOUNT CONTROLS
- C14 and MACH14 cables require no kit
- for C2, C8 and MACHZero cables the
connection kit K59 - 40144 C is included
- C5, C16 and MACH5 cables require B502CH
K60 Kit - 40145 E
- C36 and MACH36 cables require
K62 Kit - 40157 J
- C22 cable requires K61 Kit - 40146 G

B501BT/L B502BT
