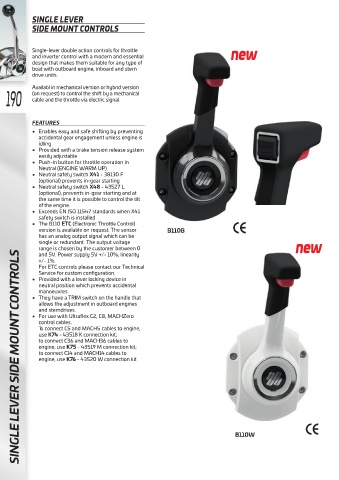

SINGLE LEVER
            SIDE MOUNT CONTROLS



            Single-lever double action controls for throttle                      new
            and inverter control with a modern and essential
            design that makes them suitable for any type of
            boat with outboard engine, inboard and stern
            drive units.
   190      Availabl in mechanical version or hybrid version
            (on request) to control the shift by a mechanical
            cable and the throttle via electric signal.



            FEATURES
            •  Enables easy and safe shifting by preventing
               accidental gear engagement unless engine is
               idling
            •  Provided with a brake tension release system
               easily adjustable
            •  Push-in button for throttle operation in
               Neutral (ENGINE WARM UP)
            •  Neutral safety switch X41 - 38130 F
               (optional) prevents in-gear starting
            •  Neutral safety switch X48 - 43527 L
               (optional), prevents in-gear starting and at
               the same time it is possible to control the tilt
               of the engine.
            •  Exceeds EN ISO 11547 standards when X41
               safety switch is installed
            •  The B110 ETC (Electronic Throttle Control)
               version is available on request. The sensor   B110B
               has an analog output signal which can be
               single or redundant. The output voltage                                                   new
               range is chosen by the customer between 0
        SINGLE LEVER SIDE MOUNT CONTROLS
               and 5V. Power supply 5V +/- 10%, linearity
               +/- 1%.
               For ETC controls please contact our Technical
               Service for custom configuration.
            •  Provided with a lever locking device in
               neutral position which prevents accidental
               manoeuvres.
            •  They have a TRIM switch on the handle that
               allows the adjustment in outboard engines
               and sterndrives.
            •  For use with Ultraflex C2, C8, MACHZero
               control cables.
               To connect C5 and MACH5 cables to engine,
               use K74 - 43518 K connection kit;
               to connect C36 and MACH36 cables to
               engine, use K75 - 43519 M connection kit;
               to connect C14 and MACH14 cables to
               engine, use K76 - 43520 W connection kit














                                                                                    B110W
