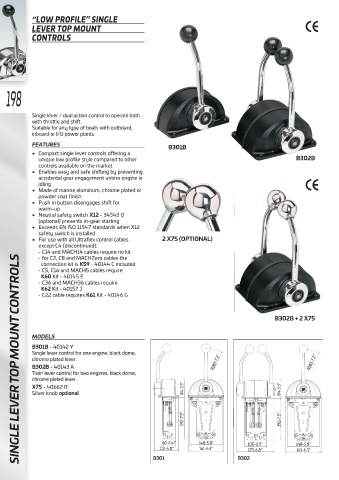

Page 200 - ULTRAFLEX Katalog 2021

“LOW PROFILE” SINGLE
LEVER TOP MOUNT
CONTROLS

198

Single lever / dual action control to operate both
with throttle and shift.
Suitable for any type of boats with outboard,
inboard or I/O power plants.

FEATURES B301B
• Compact single lever controls offering a
unique low profile style compared to other B302B
controls available on the market
• Enables easy and safe shifting by preventing
accidental gear engagement unless engine is
idling
• Made of marine aluminum, chrome plated or
powder coat finish
• Push in button disengages shift for
warm-up
• Neutral safety switch X12 - 34543 Q
(optional) prevents in-gear starting
• Exceeds EN ISO 11547 standards when X12
safety switch is installed
• For use with all Ultraflex control cables 2 X75 (OPTIONAL)
except C4 (discontinued):
- C14 and MACH14 cables require no kit
SINGLE LEVER TOP MOUNT CONTROLS
- for C2, C8 and MACHZero cables the
connection kit is K59 - 40144 C included
- C5, C16 and MACH5 cables require
K60 Kit - 40145 E
- C36 and MACH36 cables require
K62 Kit - 40157 J
- C22 cable requires K61 Kit - 40146 G

B302B + 2 X75

MODELS
B301B - 40142 Y
Single lever control for one engine, black dome,
chrome plated lever. R183-7.2” R183-7.2”
B302B - 40143 A
Twin lever control for two engines, black dome,
chrome plated lever.
X75 - 40662 B 84-3.3”
Silver knob optional 84-3.3”

192-7.5” 192-7.5”

60-2.4” 148-5.8” 100-3.9” 148-5.8”
112-4.8” 161-6.3” 173-6.8” 161-6.3”
B301 B302
