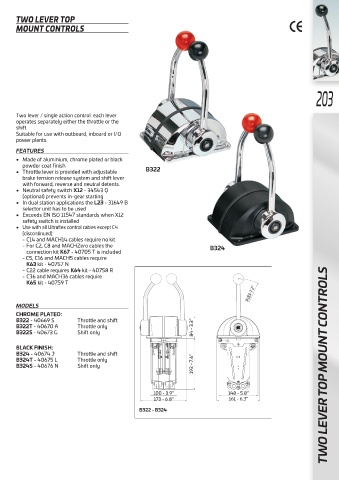

Page 205 - ULTRAFLEX Katalog 2021

TWO LEVER TOP
MOUNT CONTROLS

203

Two lever / single action control: each lever
operates separately either the throttle or the
shift.
Suitable for use with outboard, inboard or I/O
power plants.
FEATURES
• Made of aluminium, chrome plated or black
powder coat finish
• Throttle lever is provided with adjustable B322
brake tension release system and shift lever
with forward, reverse and neutral detents.
• Neutral safety switch X12 - 34543 Q
(optional) prevents in-gear starting
• In dual station applications the L23 - 31649 B
selector unit has to be used
• Exceeds EN ISO 11547 standards when X12
safety switch is installed
• Use with all Ultraflex control cables except C4
(discontinued):
- C14 and MACH14 cables require no kit
- For C2, C8 and MACHZero cables the B324
connection kit K67 - 40705 T is included
- C5, C16 and MACH5 cables require
K63 kit - 40757 N
- C22 cable requires K64 kit - 40758 R
- C36 and MACH36 cables require
K65 kit - 40759 T
R183-7.2”

MODELS
CHROME PLATED:
B322 - 40669 S Throttle and shift
B322T - 40670 A Throttle only 84 - 3.3”
B322S - 40673 G Shift only

BLACK FINISH:
B324 - 40674 J Throttle and shift
B324T - 40675 L Throttle only
B324S - 40676 N Shift only 193 - 7.6” TWO LEVER TOP MOUNT CONTROLS

100 - 3.9” 148 - 5.8”
173 - 6.8” 161 - 6.3”
B322 - B324
