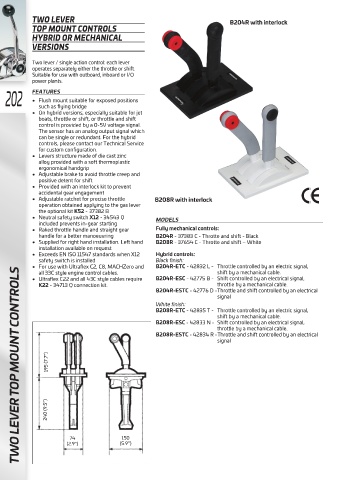

Page 204 - ULTRAFLEX Katalog 2021

TWO LEVER B204R with interlock
TOP MOUNT CONTROLS
HYBRID OR MECHANICAL
VERSIONS

Two lever / single action control: each lever
operates separately either the throttle or shift.
Suitable for use with outboard, inboard or I/O
power plants.
202 FEATURES

• Flush mount suitable for exposed positions
such as flying bridge
• On hybrid versions, especially suitable for jet
boats, throttle or shift, or throttle and shift
control is provided by a 0-5V voltage signal.
The sensor has an analog output signal which
can be single or redundant. For the hybrid
controls, please contact our Technical Service
for custom configuration.
• Levers structure made of die cast zinc
alloy provided with a soft thermoplastic
ergonomical handgrip
• Adjustable brake to avoid throttle creep and
positive detent for shift
• Provided with an interlock kit to prevent
accidental gear engagement
• Adjustable ratchet for precise throttle B208R with interlock
operation obtained applying to the gas lever
the optional kit K52 - 37382 B
• Neutral safety switch X12 - 34543 Q MODELS
included prevents in-gear starting
• Raked throttle handle and straight gear Fully mechanical controls:
handle for a better manoeuvring B204R - 37383 C - Throtte and shift - Black
• Supplied for right hand installation. Left hand B208R - 37654 C - Throtte and shift – White
installation available on request
• Exceeds EN ISO 11547 standards when X12 Hybrid controls:
safety switch is installed Black finish:
• For use with Ultraflex C2, C8, MACHZero and B204R-ETC - 42832 L - Throttle controlled by an electric signal,
TWO LEVER TOP MOUNT CONTROLS
all 33C style engine control cables. shift by a mechanical cable.
• Ultraflex C22 and all 43C style cables require B204R-ESC - 42775 B - Shift controlled by an electrical signal,
K22 - 34713 Q connection kit. throttle by a mechanical cable.
B204R-ESTC - 42776 D - Throttle and shift controlled by an electrical
signal
White finish:
B208R-ETC - 42835 T - Throttle controlled by an electric signal,
shift by a mechanical cable.
B208R-ESC - 42833 N - Shift controlled by an electrical signal,
throttle by a mechanical cable.
B208R-ESTC - 42834 R - Throttle and shift controlled by an electrical
signal

195 (7.7”)

240 (9.5”)

74 150
(2.9”) (5.9”)
