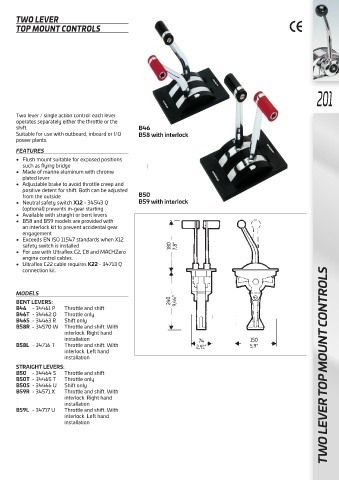

Page 203 - ULTRAFLEX Katalog 2021

TWO LEVER
TOP MOUNT CONTROLS

201

Two lever / single action control: each lever
operates separately either the throttle or the
shift. B46
Suitable for use with outboard, inboard or I/O B58 with interlock
power plants.
FEATURES
• Flush mount suitable for exposed positions
such as flying bridge
• Made of marine aluminum with chrome
plated lever
• Adjustable brake to avoid throttle creep and
positive detent for shift. Both can be adjusted
from the outside B50
• Neutral safety switch X12 - 34543 Q B59 with interlock
(optional) prevents in-gear starting
• Available with straight or bent levers
• B58 and B59 models are provided with
an interlock kit to prevent accidental gear
engagement
• Exceeds EN ISO 11547 standards when X12
safety switch is installed 180 7,8”
• For use with Ultraflex C2, C8 and MACHZero
engine control cables.
• Ultraflex C22 cable requires K22 - 34713 Q
connection kit.

MODELS
BENT LEVERS: 240 9,44”
B46 - 34461 P Throttle and shift
B46T - 34462 Q Throttle only
B46S - 34463 R Shift only
B58R - 34570 W Throttle and shift. With
interlock. Right hand
installation 74 150
B58L - 34716 T Throttle and shift. With 2,91” 5,9”
interlock. Left hand
installation
STRAIGHT LEVERS: TWO LEVER TOP MOUNT CONTROLS
B50 - 34464 S Throttle and shift
B50T - 34465 T Throttle only
B50S - 34466 U Shift only
B59R - 34571 X Throttle and shift. With
interlock. Right hand
installation
B59L - 34717 U Throttle and shift. With
interlock. Left hand
installation
