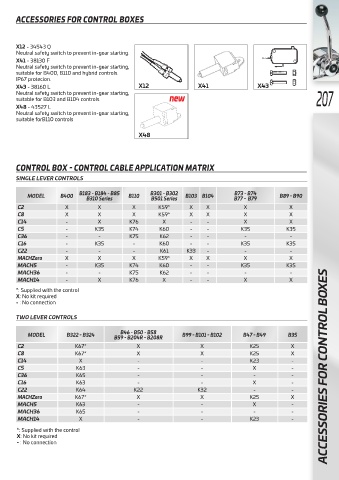

Page 209 - ULTRAFLEX Katalog 2021

ACCESSORIES FOR CONTROL BOXES

X12 - 34543 Q
Neutral safety switch to prevent in-gear starting.
X41 - 38130 F
Neutral safety switch to prevent in-gear starting,
suitable for B400, B110 and hybrid controls.
IP67 protecion.
X43 - 38160 L X12 X41 X43
Neutral safety switch to prevent in-gear starting,
suitable for B103 and B104 controls. new 207
X48 - 43527 L
Neutral safety switch to prevent in-gear starting,
suitable forB110 controls

X48

CONTROL BOX - CONTROL CABLE APPLICATION MATRIX

SINGLE LEVER CONTROLS

B73 - B74
MODEL B400 B183 - B184 - B85 B110 B301 - B302 B103 B104 B77 - B79 B89 - B90
B310 Series
B501 Series
C2 X X X K59* X X X X
C8 X X X K59* X X X X
C14 - X K76 X - - X X
C5 - K35 K74 K60 - - K35 K35
C36 - - K75 K62 - - - -
C16 - K35 - K60 - - K35 K35
C22 - - - K61 K33 - - -
MACHZero X X X K59* X X X X
MACH5 - K35 K74 K60 - - K35 K35
MACH36 - - K75 K62 - - - -
MACH14 - X K76 X - - X X

*: Supplied with the control
X: No kit required
- : No connection

TWO LEVER CONTROLS

B46 - B50 - B58
MODEL B322 - B324 B59 - B204R - B208R B99 - B101 - B102 B47 - B49 B35
C2 K67* X X K25 X
C8 K67* X X K25 X
C14 X - - K23 -
C5 K63 - - X - ACCESSORIES FOR CONTROL BOXES
C36 K65 - - - -
C16 K63 - - X -
C22 K64 K22 K32 - -
MACHZero K67* X X K25 X
MACH5 K63 - - X -
MACH36 K65 - - - -
MACH14 X - - K23 -
*: Supplied with the control
X: No kit required
- : No connection
