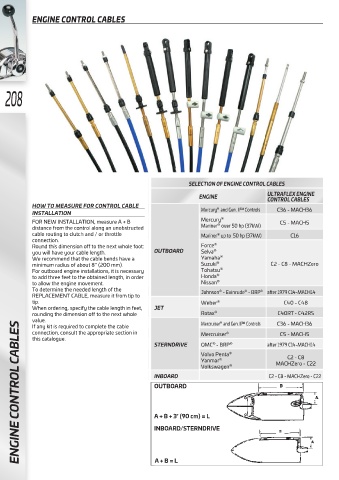

ENGINE CONTROL CABLES













   208



















                                                                   SELECTION OF ENGINE CONTROL CABLES

                                                                       ENGINE                   ULTRAFLEX ENGINE
                                                                                                CONTROL CABLES
            HOW TO MEASURE FOR CONTROL CABLE                                 ®
            INSTALLATION                                                Mercury  and Gen. II™ Controls  C36 - MACH36
            FOR NEW INSTALLATION, measure A + B                         Mercury ®                  C5 - MACH5
                                                                             ®
            distance from the control along an unobstructed             Mariner  over 50 hp (37kW)
            cable routing to clutch and / or throttle                   Mariner  up to  50 hp (37kW)   C16
                                                                             ®
            connection.
            Round this dimension off to the next whole foot:            Force ®
            you will have your cable length.           OUTBOARD         Selva ®
            We recommend that the cable bends have a                    Yamaha ®
            minimum radius of about 8” (200 mm).                        Suzuki ®                C2 - C8 - MACHZero
            For outboard engine installations, it is necessary          Tohatsu ®
            to add three feet to the obtained length, in order          Honda ®
            to allow the engine movement.                               Nissan ®
            To determine the needed length of the                       Johnson  - Evinrude  - BRP ®  after 1979 C14-MACH14
                                                                              ®
                                                                                       ®
            REPLACEMENT CABLE, measure it from tip to
            tip.                                                        Weber ®                      C40 - C48
            When ordering, specify the cable length in feet,   JET
            rounding the dimension off to the next whole                Rotax ®                    C40RT - C42RS
            value.                                                            ®
        ENGINE CONTROL CABLES
            If any kit is required to complete the cable                Mercruiser  and Gen. II™ Controls  C36 - MACH36
            connection, consult the appropriate section in              Mercruiser ®               C5 - MACH5
            this catalogue.
                                                       STERNDRIVE       OMC - BRP ®            after 1979 C14-MACH14
                                                                            ®
                                                                        Volvo Penta ®                 C2 - C8
                                                                        Yanmar ®
                                                                        Volkswagen ®              MACHZero - C22
                                                       INBOARD                                 C2 - C8 - MACHZero - C22
                                                       OUTBOARD




                                                       A + B + 3’ (90 cm) = L

                                                       INBOARD/STERNDRIVE





                                                       A + B = L
