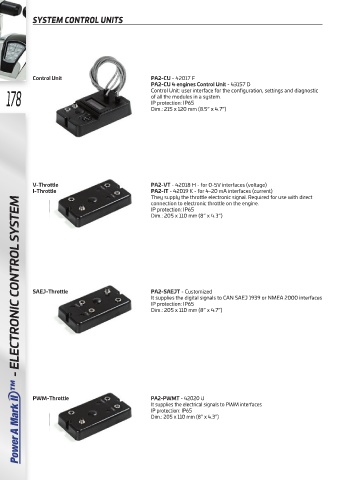

SYSTEM CONTROL UNITS

Control Unit PA2-CU - 42017 F
PA2-CU 4 engines Control Unit - 43157 D
178 Control Unit: user interface for the configuration, settings and diagnostic
of all the modules in a system.
IP protection: IP65
Dim.: 215 x 120 mm (8.5” x 4.7”)

V-Throttle PA2-VT - 42018 H - for 0-5V interfaces (voltage)
I-Throttle PA2-IT - 42019 K - for 4-20 mA interfaces (current)
They supply the throttle electronic signal. Required for use with direct
- ELECTRONIC CONTROL SYSTEM
connection to electronic throttle on the engine.
IP protection: IP65
Dim.: 205 x 110 mm (8” x 4.3”)

SAEJ-Throttle PA2-SAEJT - Customized
It supplies the digital signals to CAN SAEJ 1939 or NMEA 2000 interfaces
IP protection: IP65
Dim.: 205 x 110 mm (8” x 4.7”)

PWM-Throttle PA2-PWMT - 42020 U
It supplies the electrical signals to PWM interfaces
IP protection: IP65
Dim.: 205 x 110 mm (8” x 4.3”)
