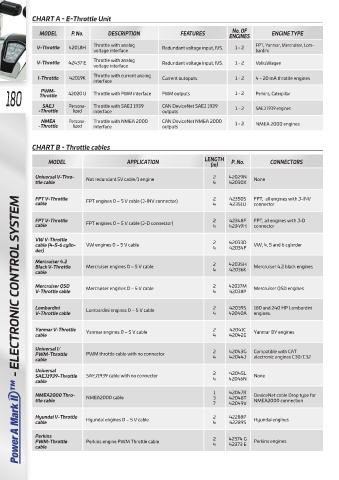

CHART A - E-Throttle Unit

No. OF
MODEL P. No. DESCRIPTION FEATURES ENGINES ENGINE TYPE

V-Throttle 42018H Throttle with analog Redundant voltage input, IVS. 1 - 2 FPT, Yanmar, Mercruiser, Lom-
voltage interface bardini.
V-Throttle 42437 E Throttle with analog Redundant voltage input, IVS. 1 - 2 VolksWagen
voltage interface
I-Throttle 42019K Throttle with current analog Current outoputs. 1 - 2 4 - 20 mA throttle engines
interface
180 Throttle 42020 U Throttle with PWM interface PWM outputs 1 - 2 Perkins, Caterpillar
PWM-

SAEJ
lized
-Throttle Persona- Throttle with SAEJ 1939 CAN DeviceNet SAEJ 1939 1 - 2 SAEJ 1939 engines
interface
outputs
NMEA Persona- Throttle with NMEA 2000 CAN DeviceNet NMEA 2000
-Throttle lized interface outputs 1 - 2 NMEA 2000 engines
CHART B - Throttle cables

MODEL APPLICATION LENGTH P. No. CONNECTORS
(m)

Universal V-Thro- Not redundant 5V cable/1 engine 2 42029N None
ttle cable 4 42030X

FPT V-Throttle 2 42350S FPT, all engines with J-INV
- ELECTRONIC CONTROL SYSTEM
cable FPT engines 0 – 5 V cable (J-INV connector) 4 42351U connector

FPT V-Throttle FPT engines 0 – 5 V cable (J-D connector) 2 42348F FPT, all engines with J-D
cable 4 42349H connector

VW V-Throttle 2 42033D
cable (4-5-6 cylin- VW engines 0 – 5 V cable VW, 4, 5 and 6 cylinder
der) 4 42034F
Mercruiser 4.2 2 42035H
Black V-Throttle Mercruiser engines 0 – 5 V cable Mercruiser 4.2 black engines
cable 4 42036K

Mercruiser QSD Mercruiser engines 0 – 5 V cable 2 42037M Mercruiser QSD engines
V-Throttle cable 4 42038P

Lombardini Lombardini engines 0 – 5 V cable 2 42039S 180 and 240 HP Lombardini
V-Throttle cable 4 42040A engines.

Yanmar V-Throttle Yanmar engines 0 – 5 V cable 2 42041C Yanmar BY engines
cable 4 42042E

Universal I/ 2 42043G Compatible with CAT
PWM-Throttle PWM throttle cable with no connector 4 42044J electronic engines C30/C32
cable
Universal
42045L
SAEJ1939-Throttle SAEJ1939 cable with no connector 2 42046N None
4
cable
NMEA2000 Thro- NMEA2000 cable 1 42047R DeviceNet cable Drop type for
ttle cable 3 42048T NMEA2000 connection
7 42049V

Hyundai V-Throttle Hyundai engines 0 – 5 V cable 2 42288P Hyundai engines
cable 4 42289S

Perkins 2
PWM-Throttle Perkins engine PWM Throttle cable 4 42374 G Perkins engines
42373 E
cable
