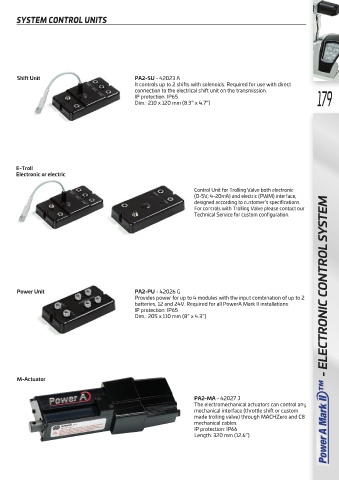

Page 181 - ULTRAFLEX Katalog 2021

SYSTEM CONTROL UNITS

Shift Unit PA2-SU - 42023 A
It controls up to 2 shifts with solenoids. Required for use with direct
connection to the electrical shift unit on the transmission.
IP protection: IP65 179
Dim.: 210 x 120 mm (8.3” x 4.7”)

E-Troll
Electronic or electric

Control Unit for Trolling Valve both electronic
(0-5V; 4-20mA) and electric (PWM) interface,
designed according to customer’s specifications.
For controls with Trolling Valve please contact our
Technical Service for custom configuration.

Power Unit PA2-PU - 42026 G - ELECTRONIC CONTROL SYSTEM
Provides power for up to 4 modules with the input combination of up to 2
batteries, 12 and 24V. Required for all PowerA Mark II installations.
IP protection: IP65
Dim.: 205 x 110 mm (8” x 4.3”)

M-Actuator

PA2-MA - 42027 J
The electromechanical actuators can control any
mechanical interface (throttle shift or custom
made trolling valve) through MACHZero and C8
mechanical cables.
IP protection: IP66
Length: 320 mm (12.6”)
