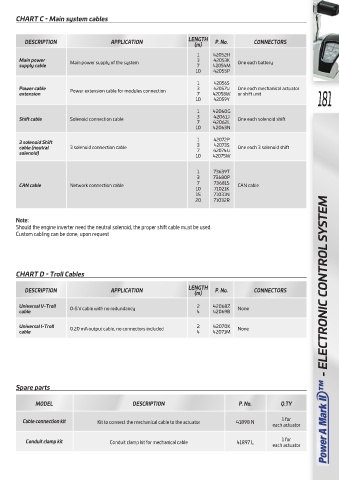

CHART C - Main system cables

DESCRIPTION APPLICATION LENGTH P. No. CONNECTORS
(m)
1 42052H
Main power Main power supply of the system 3 42053K One each battery
supply cable 7 42054M
10 42055P

1 42056S
Power cable Power extension cable for modules connection 3 42057U One each mechanical actuator
extension 7 42058W or shift unit 181
10 42059Y

1 42060G
Shift cable Solenoid connection cable 3 42061J One each solenoid shift
7 42062L
10 42063N

3 solenoid Shift 3 1 42072P
42073S
cable (neutral 3 solenoid connection cable One each 3 solenoid shift
solenoid) 7 42074U
10 42075W

1 73639T
3 73680P
CAN cable Network connection cable 7 73681S CAN cable
10 71021K
15 71031N
20 71032R

Note:
Should the engine inverter need the neutral solenoid, the proper shift cable must be used.
Custom cabling can be done, upon request

CHART D - Troll Cables

DESCRIPTION APPLICATION LENGTH P. No. CONNECTORS - ELECTRONIC CONTROL SYSTEM
(m)
Universal V-Troll 0-5 V cable with no redundancy 2 42068Z None
cable 4 42069B

Universal I-Troll 0.20 mA output cable, no connectors included 2 42070K None
cable 4 42071M

Spare parts

MODEL DESCRIPTION P. No. Q.TY

1 for
Cable connection kit Kit to connect the mechanical cable to the actuator 41898 N each actuator

1 for
Conduit clamp kit Conduit clamp kit for mechanical cable 41897 L each actuator
