Outboard Rigging & Accessories
RIGGING KITS - FOR MECHANICAL REMOTE CONTROL

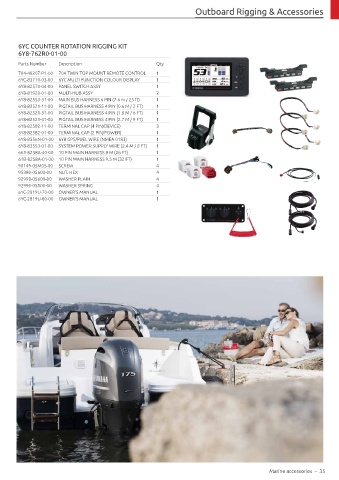

6YC COUNTER ROTATION RIGGING KIT
6Y8-762R0-01-00
Parts Number Description Qty
704-48207-P1-00 704 TWIN TOP MOUNT REMOTE CONTROL 1
6YC-83710-03-00 6YC MULTI FUNCTION COLOUR DISPLAY 1
6Y8-82570-04-00 PANEL SWITCH ASSY 1
6Y8-81920-01-00 MULTI-HUB ASSY 2
6Y8-82553-31-00 MAIN BUS HARNESS 6 PIN (7.6 m / 25 ft) 1
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1
6Y8-82521-41-00 PIGTAIL BUS HARNESS 4 PIN (2.7 M / 9 FT) 1
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 3
6Y8-82582-01-00 TERMINAL CAP (2 PIN/POWER) 1
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1
6K1-8258A-40-00 10 PIN MAIN HARNESS 8 M (26 FT) 1
61B-8258A-01-00 10 PIN MAIN HARNESS 9.5 M (32 FT) 1
90149-05M05-00 SCREW 4
95380-05600-00 NUT. HEX 4
92990-05600-00 WASHER PLAIN 4
92990-05100-00 WASHER SPRING 4
6YC-2819U-70-00 OWNER'S MANUAL 1
6YC-2819U-80-00 OWNER'S MANUAL 1
