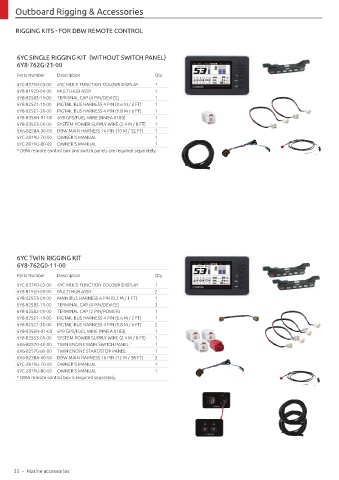

P. 34
Outboard Rigging & Accessories
RIGGING KITS - FOR DBW REMOTE CONTROL
6YC SINGLE RIGGING KIT (WITHOUT SWITCH PANEL)
6Y8-762G-21-00
Parts Number Description Qty
6YC-83710-03-00 6YC MULTI FUNCTION COLOUR DISPLAY 1
6Y8-81920-01-00 MULTI-HUB ASSY 1
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 1
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1
6X6-8258A-30-00 DBW MAIN HARNESS 16 PIN (10 M / 32 FT) 1
6YC-2819U-70-00 OWNER'S MANUAL 1
6YC-2819U-80-00 OWNER'S MANUAL 1
* DBW remote control box and switch panels are required separately.
6YC TWIN RIGGING KIT
6Y8-762G0-11-00
Parts Number Description Qty
6YC-83710-03-00 6YC MULTI FUNCTION COLOUR DISPLAY 1
6Y8-81920-01-00 MULTI-HUB ASSY 2
6Y8-82553-01-00 MAIN BUS HARNESS 6 PIN (0.3 M / 1 FT) 1
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 3
6Y8-82582-01-00 TERMINAL CAP (2 PIN/POWER) 1
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 2
6Y8-8356N-01-00 6Y8 GPS/FUEL WIRE (NMEA 0183) 1
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1
6X6-82570-40-00 TWIN ENGINE MAIN SWITCH PANEL 1
6X6-82570-60-00 TWIN ENGINE START/STOP PANEL 1
6X6-8258A-40-00 DBW MAIN HARNESS 16 PIN (12 M / 38 FT) 2
6YC-2819U-70-00 OWNER'S MANUAL 1
6YC-2819U-80-00 OWNER'S MANUAL 1
* DBW remote control box is required separately.
