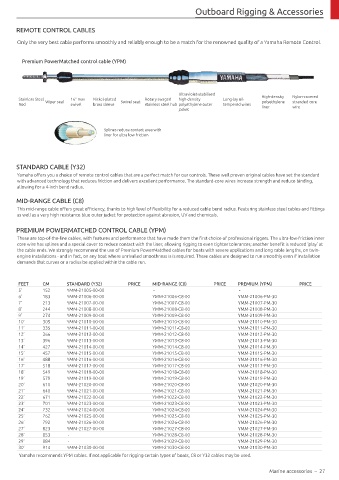

Page 29 - Yamaha Marine Marine Zubehör 2019

Outboard Rigging & Accessories

REMOTE CONTROL CABLES

Only the very best cable performs smoothly and reliably enough to be a match for the renowned quality of a Yamaha Remote Control.

Premium PowerMatched control cable (YPM)

Ultraviolet-stabilised
Stainless Steel 16” max Nickel-plated Rotary swaged high-density Long-lay oil- High-density Nylon-covered
Rod Wiper seal swivel brass sleeve Swivel seat stainless steel hub polyethylene outer tempered wires polyethylene stranded core
jacket liner wire

Splines reduce contact area with
liner for ultra low friction

STANDARD CABLE (Y32)
Yamaha offers you a choice of remote control cables that are a perfect match for our controls. These well proven original cables have set the standard
with advanced technology that reduces friction and delivers excellent performance. The standard-core wires increase strength and reduce binding,
allowing for a 4-inch bend radius.

MID-RANGE CABLE (C8)
This mid-range cable offers great efficiency, thanks to high level of flexibility for a reduced cable bend radius. Featuring stainless steel cables and fittings
as well as a very high resistance blue outer jacket for protection against abrasion, UV and chemicals.

PREMIUM POWERMATCHED CONTROL CABLE (YPM)
These are top-of-the-line cables, with features and performance that have made them the first choice of professional riggers. The ultra-low-friction inner
core wire has splines and a special cover to reduce contact with the liner, allowing rigging to even tighter tolerances; another benefit is reduced ‘play’ at
the cable ends. We strongly recommend the use of Premium PowerMatched cables for boats with severe applications and long cable lengths, on twin-
engine installations - and in fact, on any boat where unrivalled smoothness is is required. These cables are designed to run smoothly even if installation
demands that curves or a radius be applied within the cable run.

FEET CM STANDARD (Y32) PRICE MID-RANGE (C8) PRICE PREMIUM (YPM) PRICE
5’ 152 YMM-21005-00-00 - -
6’ 183 YMM-21006-00-00 YMM-21006-C8-00 YMM-21006-PM-30
7’ 213 YMM-21007-00-00 YMM-21007-C8-00 YMM-21007-PM-30
8’ 244 YMM-21008-00-00 YMM-21008-C8-00 YMM-21008-PM-30
9’ 274 YMM-21009-00-00 YMM-21009-C8-00 YMM-21009-PM-30
10’ 305 YMM-21010-00-00 YMM-21010-C8-00 YMM-21010-PM-30
11’ 335 YMM-21011-00-00 YMM-21011-C8-00 YMM-21011-PM-30
12’ 366 YMM-21012-00-00 YMM-21012-C8-00 YMM-21012-PM-30
13’ 396 YMM-21013-00-00 YMM-21013-C8-00 YMM-21013-PM-30
14’ 427 YMM-21014-00-00 YMM-21014-C8-00 YMM-21014-PM-30
15’ 457 YMM-21015-00-00 YMM-21015-C8-00 YMM-21015-PM-30
16’ 488 YMM-21016-00-00 YMM-21016-C8-00 YMM-21016-PM-30
17’ 518 YMM-21017-00-00 YMM-21017-C8-00 YMM-21017-PM-30
18’ 549 YMM-21018-00-00 YMM-21018-C8-00 YMM-21018-PM-30
19’ 579 YMM-21019-00-00 YMM-21019-C8-00 YMM-21019-PM-30
20’ 610 YMM-21020-00-00 YMM-21020-C8-00 YMM-21020-PM-30
21’ 640 YMM-21021-00-00 YMM-21021-C8-00 YMM-21021-PM-30
22’ 671 YMM-21022-00-00 YMM-21022-C8-00 YMM-21022-PM-30
23’ 701 YMM-21023-00-00 YMM-21023-C8-00 YMM-21023-PM-30
24’ 732 YMM-21024-00-00 YMM-21024-C8-00 YMM-21024-PM-30
25’ 762 YMM-21025-00-00 YMM-21025-C8-00 YMM-21025-PM-30
26’ 792 YMM-21026-00-00 YMM-21026-C8-00 YMM-21026-PM-30
27’ 823 YMM-21027-00-00 YMM-21027-C8-00 YMM-21027-PM-30
28’ 853 - YMM-21028-C8-00 YMM-21028-PM-30
29’ 884 - YMM-21029-C8-00 YMM-21029-PM-30
30’ 914 YMM-21030-00-00 YMM-21030-C8-00 YMM-21030-PM-30
Yamaha recommends YPM cables. If not applicable for rigging certain types of boats, C8 or Y32 cables may be used.
