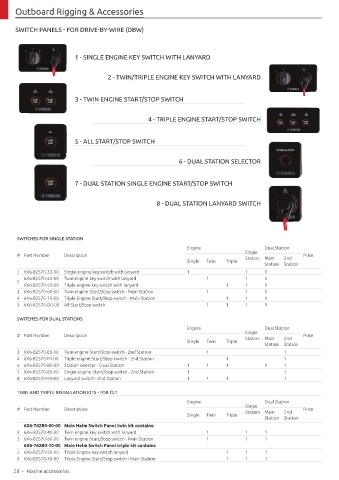

Outboard Rigging & Accessories

SWITCH PANELS - FOR DRIVE-BY-WIRE (DBW)

1 - SINGLE ENGINE KEY SWITCH WITH LANYARD

2 - TWIN/TRIPLE ENGINE KEY SWITCH WITH LANYARD

3 - TWIN ENGINE START/STOP SWITCH

4 - TRIPLE ENGINE START/STOP SWITCH

5 - ALL START/STOP SWITCH

6 - DUAL STATION SELECTOR

7 - DUAL STATION SINGLE ENGINE START/STOP SWITCH

8 - DUAL STATION LANYARD SWITCH

SWITCHES FOR SINGLE STATION
Engine Dual Station
Single
# Part Number Description Station Main 2nd Price
Single Twin Triple
Station Station
1 6X6-82570-33-00 Single engine key switch with lanyard 1 1 1
6X6-82570-40-00 Twin engine key switch with lanyard 1 1 1
2
6X6-82570-50-00 Triple engine key switch with lanyard 1 1 1
3 6X6-82570-60-00 Twin engine Start/Stop switch - Main Station 1 1 1
4 6X6-82570-70-00 Triple Engine Start/Stop switch - Main Station 1 1 1
5 6X6-82570-D0-00 All Start/Stop switch 1 1 1 1

SWITCHES FOR DUAL STATIONS
Engine Dual Station
# Part Number Description Single Main 2nd Price
Single Twin Triple Station
Station Station
3 6X6-82570-E0-00 Twin engine Start/Stop switch - 2nd Station 1 1
4 6X6-82570-F0-00 Triple engine Start/Stop ewitch - 2nd Station 1 1
6 6X6-82570-B0-00 Station selector - Dual Station 1 1 1 1 1
7 6X6-82570-80-00 Single engine Start/Stop switch - 2nd Station 1 1
8 6X6-82570-90-00 Lanyard switch - 2nd Station 1 1 1 1

TWIN AND TRIPLE INSTALLATION KITS - FOR CL7

Engine Dual Station
# Part Number Description Single Price
Single Twin Triple Station Main 2nd
Station Station
6X6-762B0-00-00 Main Helm Switch Panel twin kit contains:
2 6X6-82570-40-00 Twin engine key switch with lanyard 1 1 1
3 6X6-82570-60-00 Twin engine Start/Stop switch - Main Station 1 1 1
6X6-762B0-10-00 Main Helm Switch Panel triple kit contains
2 6X6-82570-50-00 Triple Engine key switch lanyard 1 1 1
4 6X6-82570-70-00 Triple Engine Start/Stop switch - Main Station 1 1 1

28 – Marine accessories
