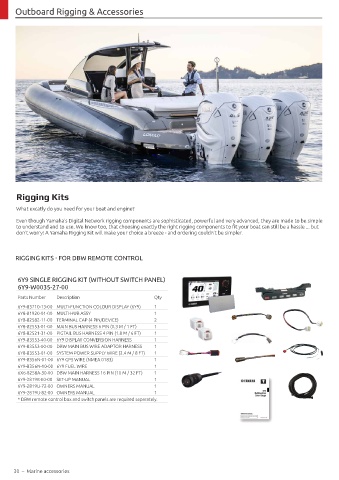

Page 32 - Yamaha Marine Marine Zubehör 2019
P. 32
Outboard Rigging & Accessories
Rigging Kits
What excatly do you need for your boat and engine?
Even though Yamaha’s Digital Network rigging components are sophisticated, powerful and very advanced, they are made to be simple
to understand and to use. We know too, that choosing exactly the right rigging components to fit your boat can still be a hassle ... but
don’t worry! A Yamaha Rigging Kit will make your choice a breeze - and ordering couldn’t be simpler.
RIGGING KITS - FOR DBW REMOTE CONTROL
6Y9 SINGLE RIGGING KIT (WITHOUT SWITCH PANEL)
6Y9-W0035-27-00
Parts Number Description Qty
6Y9-83710-13-00 MULTI-FUNCTION COLOUR DISPLAY (6Y9) 1
6Y8-81920-01-00 MULTI-HUB ASSY 1
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 2
6Y8-82553-01-00 MAIN BUS HARNESS 6 PIN (0.3 M / 1 FT) 1
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1
6Y9-83553-40-00 6Y9 DISPLAY CONVERSION HARNESS 1
6Y9-83553-00-00 DBW MAIN BUS WIRE ADAPTOR HARNESS 1
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1
6Y9-8356N-01-00 6Y9 GPS WIRE (NMEA 0183) 1
6Y9-8356N-10-00 6Y9 FUEL WIRE 1
6X6-8258A-30-00 DBW MAIN HARNESS 16 PIN (10 M / 32 FT) 1
6Y9-2819K-E0-00 SET-UP MANUAL 1
6Y9-2819U-72-00 OWNERS MANUAL 1
6Y9-2819U-82-00 OWNERS MANUAL 1
* DBW remote control box and switch panels are required separately.
30 – Marine accessories
