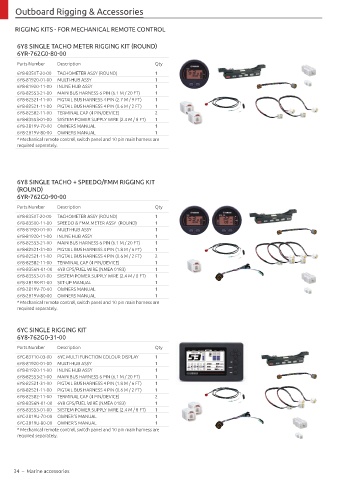

Outboard Rigging & Accessories



      RIGGING KITS - FOR MECHANICAL REMOTE CONTROL

       6Y8 SINGLE TACHO METER RIGGING KIT (ROUND)
       6YR-762G0-80-00
       Parts Number  Description                       Qty
       6Y8-8350T-20-00  TACHOMETER ASSY (ROUND)        1
       6Y8-81920-01-00  MULTI-HUB ASSY                 1
       6Y8-81920-11-00  INLINE HUB ASSY                1
       6Y8-82553-21-00  MAIN BUS HARNESS 6 PIN (6.1 M / 20 FT)  1
       6Y8-82521-41-00  PIGTAIL BUS HARNESS 4 PIN (2.7 M / 9 FT)  1
       6Y8-82521-11-00  PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT)  1
       6Y8-82582-11-00  TERMINAL CAP (4 PIN/DEVICE)    2
       6Y8-83553-01-00  SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT)  1
       6Y8-2819V-70-00  OWNERS MANUAL                  1
       6Y8-2819V-80-00  OWNERS MANUAL                  1
       * Mechanical remote control, switch panel and 10 pin main harness are
       required separately.






       6Y8 SINGLE TACHO + SPEEDO/FMM RIGGING KIT
       (ROUND)
       6YR-762G0-90-00

       Parts Number  Description                       Qty
       6Y8-8350T-20-00  TACHOMETER ASSY (ROUND)        1
       6Y8-83500-11-00  SPEEDO & FMM METER ASSY  (ROUND)  1
       6Y8-81920-01-00  MULTI-HUB ASSY                 1
       6Y8-81920-11-00  INLINE HUB ASSY                1
       6Y8-82553-21-00  MAIN BUS HARNESS 6 PIN (6.1 M / 20 FT)  1
       6Y8-82521-31-00  PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT)  1
       6Y8-82521-11-00  PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT)  2
       6Y8-82582-11-00  TERMINAL CAP (4 PIN/DEVICE)    1
       6Y8-8356N-01-00  6Y8 GPS/FUEL WIRE (NMEA 0183)  1
       6Y8-83553-01-00  SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT)  1
       6Y8-2819K-R1-00  SET-UP MANUAL                  1
       6Y8-2819V-70-00  OWNERS MANUAL                  1
       6Y8-2819V-80-00  OWNERS MANUAL                  1
       * Mechanical remote control, switch panel and 10 pin main harness are
       required separately.



       6YC SINGLE RIGGING KIT
       6Y8-762G0-31-00

       Parts Number  Description                       Qty
       6YC-83710-03-00  6YC MULTI FUNCTION COLOUR DISPLAY  1
       6Y8-81920-01-00  MULTI-HUB ASSY                 1
       6Y8-81920-11-00  INLINE HUB ASSY                1
       6Y8-82553-21-00  MAIN BUS HARNESS 6 PIN (6.1 M / 20 FT)  1
       6Y8-82521-31-00  PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT)  1
       6Y8-82521-11-00  PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT)  1
       6Y8-82582-11-00  TERMINAL CAP (4 PIN/DEVICE)    2
       6Y8-8356N-01-00  6Y8 GPS/FUEL WIRE (NMEA 0183)  1
       6Y8-83553-01-00  SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT)  1
       6YC-2819U-70-00  OWNER'S MANUAL                 1
       6YC-2819U-80-00  OWNER'S MANUAL                 1
       * Mechanical remote control, switch panel and 10 pin main harness are
       required separately.
