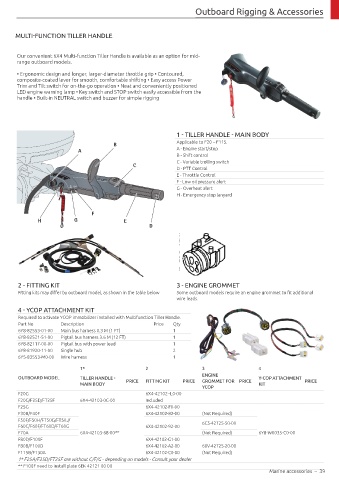

Outboard Rigging & Accessories

MULTI-FUNCTION TILLER HANDLE

Our convenient 6X4 Multi-function Tiller Handle is available as an option for mid-
range outboard models.

• Ergonomic design and longer, larger-diameter throttle grip • Contoured,
composite-coated lever for smooth, comfortable shifting • Easy access Power
Trim and Tilt switch for on-the-go operation • Neat and conveniently positioned
LED engine warning lamp • Key switch and STOP switch easily accessible from the
handle • Built-in NEUTRAL switch and buzzer for simple rigging

1 - TILLER HANDLE - MAIN BODY
B Applicable to F20 – F115.
A A - Engine start/stop
B - Shift control
C - Variable trolling switch
C
D - PTT Control
E - Throttle Control
F - Low oil pressure alert
G - Overheat alert
H - Emergency stop lanyard

F
H G E
D

2 - FITTING KIT 3 - ENGINE GROMMET
Fitting kits may differ by outboard model, as shown in the table below Some outboard models require an engine grommet to fit additional
wire leads.
4 - YCOP ATTACHMENT KIT
Required to activate YCOP immobilizer installed with Multifunction Tiller Handle.
Part No Description Price Qty
6Y8-82553-01-00
F115B_Multi-function tiller handle Main bus harness 0.3 M (1 FT) 1
6Y8-82521-51-00 Pigtail bus harness 3.6 M (12 FT) 1
6Y8-82117-00-00 Pigtail bus with power lead 1
6Y8-81920-11-00 Single hub 2
6Y5-83553-M0-00 Wire harness 1
1* 2 3 4
ENGINE
OUTBOARD MODEL TILLER HANDLE - PRICE FITTING KIT PRICE GROMMET FOR PRICE Y-COP ATTACHMENT PRICE
MAIN BODY KIT
YCOP
F20G 6X4-42102--L0-00
F20G/F25D/FT25F 6X4-42103-0C-00 Included
F25G 6X4-42102-F0-00
F30B/F40F 6X4-42102-82-00 (Not Required)
F50F/F50H/FT50G/FT50J/ 6C5-42725-50-00
F60C/F60F/FT60D/FT60G 6X4-42102-92-00
F70A 6X4-42103-68-00** (Not Required) 6Y8-W0035-C0-00
F80D/F100F 6X4-42102-G1-00
F80B/F100D 6X4-42102-A2-00 68V-42725-20-00
F115B/F130A 6X4-42102-C0-00 (Not Required)
1* F25A/F25D/FT25F are without C/F/G - depending on models - Consult your dealer
** F100F need to install plate 6EK 42121 00 00
