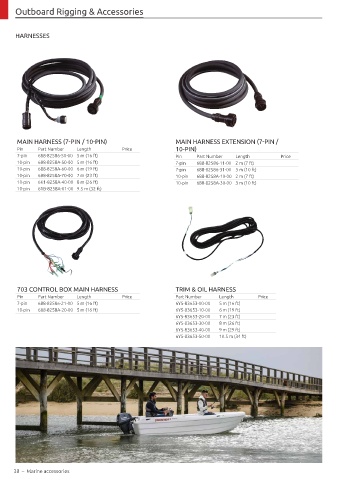

P. 40
Outboard Rigging & Accessories
HARNESSES
MAIN HARNESS (7-PIN / 10-PIN) MAIN HARNESS EXTENSION (7-PIN /
Pin Part Number Length Price 10-PIN)
7-pin 688-82586-50-00 5 m (16 ft) Pin Part Number Length Price
10-pin 688-8258A-50-00 5 m (16 ft) 7-pin 688-82586-11-00 2 m (7 ft)
10-pin 688-8258A-60-00 6 m (19 ft) 7-pin 688-82586-31-00 3 m (10 ft)
10-pin 688-8258A-70-00 7 m (23 ft) 10-pin 688-8258A-10-00 2 m (7 ft)
10-pin 6K1-8258A-40-00 8 m (26 ft) 10-pin 688-8258A-30-00 3 m (10 ft)
10-pin 61B-8258A-01-00 9.5 m (32 ft)
703 CONTROL BOX MAIN HARNESS TRIM & OIL HARNESS
Pin Part Number Length Price Part Number Length Price
7-pin 688-82586-21-00 5 m (16 ft) 6Y5-83653-00-00 5 m (16 ft)
10-pin 688-8258A-20-00 5 m (16 ft) 6Y5-83653-10-00 6 m (19 ft)
6Y5-83653-20-00 7 m (23 ft)
6Y5-83653-30-00 8 m (26 ft)
6Y5-83653-40-00 9 m (29 ft)
6Y5-83653-50-00 10.5 m (34 ft)
38 – Marine accessories
