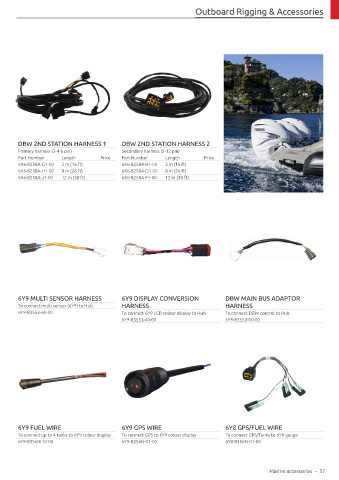

P. 39
Outboard Rigging & Accessories
HARNESSES
DBW 2ND STATION HARNESS 1 DBW 2ND STATION HARNESS 2
Primary harness (3-4-6 pin) Secondary harness (2-12 pin)
Part Number Length Price Part Number Length Price
6X6-8258A-G1-00 5 m (16 ft) 6X6-8258A-B1-00 5 m (16 ft)
6X6-8258A-H1-00 8 m (26 ft) 6X6-8258A-D1-00 8 m (26 ft)
6X6-8258A-J1-00 12 m (38 ft) 6X6-8258A-F1-00 12 m (38 ft)
6Y9 MULTI SENSOR HARNESS 6Y9 DISPLAY CONVERSION DBW MAIN BUS ADAPTOR
To connect multi sensor (6Y9) to Hub HARNESS HARNESS
6Y9-83553-60-00 To connect 6Y9 LCD colour display to Hub To connect DBW control to Hub
6Y9-83553-40-00 6Y9-83553-00-00
6Y9 FUEL WIRE 6Y9 GPS WIRE 6Y8 GPS/FUEL WIRE
To connect up to 4 tanks to 6Y9 colour display To connect GPS to 6Y9 colour display To connect GPS/Tanks to 6Y8 gauge
6Y9-8356N-10-00 6Y9-8356N-01-00 6Y8-8356N-01-00
Marine accessories – 37
