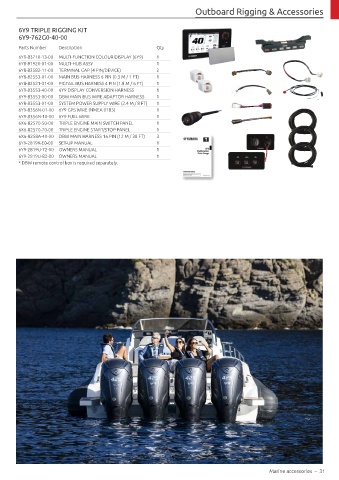

Page 33 - Yamaha Marine Marine Zubehör 2019
P. 33
Outboard Rigging & Accessories
6Y9 TRIPLE RIGGING KIT
6Y9-762G0-40-00
Parts Number Description Qty
6Y9-83710-13-00 MULTI-FUNCTION COLOUR DISPLAY (6Y9) 1
6Y8-81920-01-00 MULTI-HUB ASSY 1
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 2
6Y8-82553-01-00 MAIN BUS HARNESS 6 PIN (0.3 M / 1 FT) 1
6Y8-82521-31-00 PIGTAIL BUS HARNESS 4 PIN (1.8 M / 6 FT) 1
6Y9-83553-40-00 6Y9 DISPLAY CONVERSION HARNESS 1
6Y9-83553-00-00 DBW MAIN BUS WIRE ADAPTOR HARNESS 1
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1
6Y9-8356N-01-00 6Y9 GPS WIRE (NMEA 0183) 1
6Y9-8356N-10-00 6Y9 FUEL WIRE 1
6X6-82570-50-00 TRIPLE ENGINE MAIN SWITCH PANEL 1
6X6-82570-70-00 TRIPLE ENGINE START/STOP PANEL 1
6X6-8258A-40-00 DBW MAIN HARNESS 16 PIN (12 M / 38 FT) 3
6Y9-2819K-E0-00 SET-UP MANUAL 1
6Y9-2819U-72-00 OWNERS MANUAL 1
6Y9-2819U-82-00 OWNERS MANUAL 1
* DBW remote control box is required separately.
