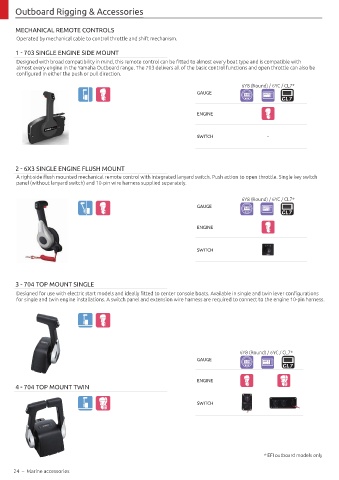

Page 26 - Yamaha Marine Marine Zubehör 2019

Outboard Rigging & Accessories

MECHANICAL REMOTE CONTROLS
Operated by mechanical cable to control throttle and shift mechanism.

1 - 703 SINGLE ENGINE SIDE MOUNT
Designed with broad compatibility in mind, this remote control can be fitted to almost every boat type and is compatible with
almost every engine in the Yamaha Outboard range. The 703 delivers all of the basic control functions and open throttle can also be
configured in either the push or pull direction.
6Y8 (Round) / 6YC / CL7*
GAUGE
CL7

ENGINE

SWITCH -

2 - 6X3 SINGLE ENGINE FLUSH MOUNT
A right-side flush mounted mechanical remote control with integrated lanyard switch. Push action to open throttle. Single key switch
panel (without lanyard switch) and 10-pin wire harness supplied separately.

6Y8 (Round) / 6YC / CL7*
GAUGE
CL7

ENGINE

SWITCH -

3 - 704 TOP MOUNT SINGLE
Designed for use with electric start models and ideally fitted to center console boats. Available in single and twin lever configurations
for single and twin engine installations. A switch panel and extension wire harness are required to connect to the engine 10-pin harness.

6Y8 (Round) / 6YC / CL7*
GAUGE
CL7

ENGINE
4 - 704 TOP MOUNT TWIN

SWITCH

* EFI outboard models only
