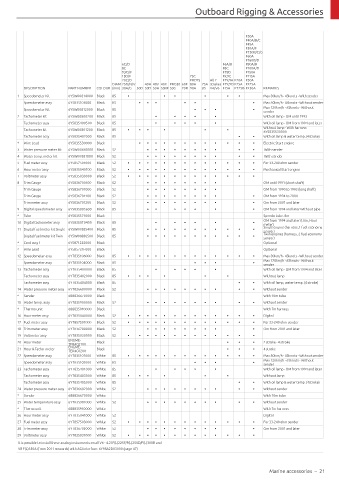

Outboard Rigging & Accessories

F30A
F40A/B/C
F45A
F50A/F
FT50B/C/G
F60A
FT60B/D
6C/D F6A/B F80A/B
8C F8C F100A/D
9,9D/F FT8D F150A
15D/F 75C F9,9C F115A
20C/D PRO75 All 2 FT9,9A F20A F30A
DIAM 25D/N/V 40H 40V 40X PRO50 60F 80A 75A strokes FT9,9D F25A F225A
DESCRIPTION PART NUMBER COLOUR (mm) 30A/G 30D 50D 50H 55BE 50G 70B 90A 85 V4/V6 F15A FT25B F250A REMARKS
1 Speedometer Kit 6Y5W00814000 Black 85 • • • • • • Max 80km/h - 43knots - With sender
Speedometer assy 6Y5835103000 Black 85 • • • • • • Max 80km/h - 43knots - Without sender
Speedometer Kit 6Y5W00812000 Black 85 • • • • Max 120km/h - 65knots - Without
sender
2 Tachometer kit 6Y5W00800200 Black 85 • • • • • With oil lamp - OM until 1993
Tachometer assy 6Y5835400500 Black 85 • • • • • With oil lamp - OM from 1994 and later
Tachometer kit 6Y5W00801200 Black 85 • • • • • • Without lamp - With harness
6Y5835530000
Tachometer assy 6Y5835402000 Black 85 • • With oil lamp & water temp. (4stroke)
* Wire Lead 6Y5835530000 Black • • • • • • • • • • • • Electric Start engine
3 Water pressure meter kit 6Y5W00880000 Black 52 • • • • • • • • • • With sender
4 Water temp. meter kit 6Y5W00881000 Black 52 • • • • • • • • • • With sender
5 Fuel meter assy 6Y5857501000 Black 52 • • • • • • • • • • • • • For 33-240 ohm sender
6 Hour meter assy 6Y5835040100 Black 52 • • • • • • • • • • • • • Mechanical Start engine
7 Voltmeter assy 6Y5835030000 Black 52 • • • • • • • • • • • • •
8 Trim Gauge 6Y5836700100 Black 52 • • • • • • • • OM until 1991 (short shaft)
Trim Gauge 6Y5836701000 Black 52 • • • • • • • • OM from 1990 to 1993 (long shaft)
Trim Gauge 6Y5836701100 Black 52 • • • • • • • • • OM from 1994 to 2000
Trim meter assy 6Y5836701200 Black 52 • • • • • • • • • Om from 2001 and later
9 Digital speedometer assy 6Y583500S600 Black 85 • • • • • • • OM from 1994 and later Without pipe
* Tube 6Y5835571000 Black Speedo tube. 8m
10 Digital tachometer assy 6Y58350T0400 Black 85 • • • • • • OM from 1994 and later (trim, Hour
meter)
11 Digital fuel meter kit Single 6Y5W00885400 Black 85 • • • • • • • • • • • Single engine (harness ,1 fuel economy
sensor)
Digital fuel meter kit Twin 6Y5W00886500 Black 85 • • • • • • • • • • • Twin engines (harness ,2 fuel economy
sensor)
* Cord assy 1 6Y587122S000 Black Optional
* Wire Lead 6Y585721F000 Black Optional
12 Speedometer assy 6Y7835106000 Black 85 • • • • • • • • • • • • • Max 80km/h - 43knots - Without sender
Speedometer assy 6Y7835104000 Black 85 • • • • Max 120km/h - 65knots - Without
sender
13 Tachometer assy 6Y7835400000 Black 85 • • • • • With oil lamp - OM from 1994 and later
Tachometer assy 6Y7835402000 Black 85 • • • • • • Without lamp
Tachometer assy 6Y7835404000 Black 85 • • With oil lamp, water temp. (4 stroke)
14 Water pressure meter assy 6Y7836600000 Black 52 • • • • • • • • • • Without sender
* Sender 688836670000 Black With 10m tube
15 Water temp. assy 6Y7835900000 Black 52 • • • • • • • • • • Without sender
* Thermo unit 688835910000 Black With 7m harness
16 Hour meter assy 6Y7835040000 Black 52 • • • • • • • • • • • • • Digital
17 Fuel meter assy 6Y7857501000 Black 52 • • • • • • • • • • • • • For 33-240 ohm sender
18 Trim meter assy 6Y7836700000 Black 52 • • • • • • • • • Om from 2001 and later
19 Voltmeter assy 6Y7835030000 Black 52 • • • • • • • • • • • • •
20 Hour meter ENGME- Black • • • 2 stroke - 4 stroke
TER4C0100
21 Hour & Tacho meter ENGME- Black • • • 4 stroke
TER4C0200
22 Speedometer assy 6Y7835107000 White 85 • • • • • • • • • • • • • Max 80km/h - 43knots - Without sender
Speedometer assy 6Y7835105000 White 85 • • • • Max 120km/h - 65knots - Without
sender
23 Tachometer assy 6Y7835401000 White 85 • • • • • With oil lamp - OM from 1994 and later
Tachometer assy 6Y7835403000 White 85 • • • • • • Without lamp
Tachometer assy 6Y7835405000 White 85 • • With oil lamp & water temp. (4stroke)
24 Water pressure meter assy 6Y7836602000 White 52 • • • • • • • • • • Without sender
* Sender 688836670000 White With 10m tube
25 Water temperature assy 6Y7835901000 White 52 • • • • • • • • • • Without sender
* Themo unit 688835910000 White With 7m harness
26 Hour meter assy 6Y7835041000 White 52 Digital
27 Fuel meter assy 6Y7857503000 White 52 • • • • • • • • • • • • • For 33-240 ohm sender
28 Trim meter assy 6Y7836702000 White 52 • • • • • • • • • Om from 2001 and later
29 Voltmeter assy 6Y7835031000 White 52 • • • • • • • • • • • • •
It is possible to install these analog insturments on all V6 - 4.2l F(L)225F/F(L)250D/F(L)300B and
V8 F(L)350A (from 2011 onwards) with AGI interface: 6Y98A2D03000 (page 47)
