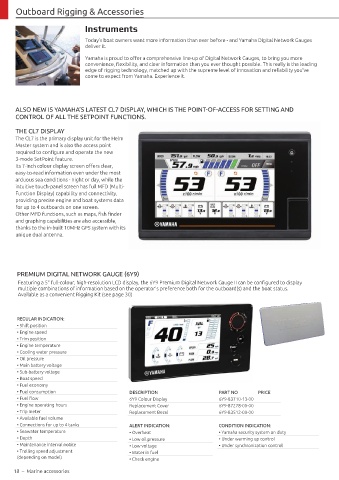

Page 20 - Yamaha Marine Marine Zubehör 2019

Outboard Rigging & Accessories Outboard Rigging & Accessories

Instruments

Today's boat owners want more information than ever before - and Yamaha Digital Network Gauges
deliver it.

Yamaha is proud to offer a comprehensive line-up of Digital Network Gauges, to bring you more
convenience, flexibility, and clear information than you ever thought possible. This really is the leading
edge of rigging technology, matched up with the supreme level of innovation and reliability you’ve
come to expect from Yamaha. Experience it.

ALSO NEW IS YAMAHA’S LATEST CL7 DISPLAY, WHICH IS THE POINT-OF-ACCESS FOR SETTING AND
CONTROL OF ALL THE SETPOINT FUNCTIONS.

THE CL7 DISPLAY
The CL7 is the primary display unit for the Helm
Master system and is also the access point
required to configure and operate the new
3-mode SetPoint feature.
Its 7-inch colour display screen offers clear,
easy-to-read information even under the most
arduous sea conditions - night or day, while the
intuitive touch-panel screen has full MFD (Multi-
Function Display) capability and connectivity,
providing precise engine and boat systems data
for up to 4 outboards on one screen.
Other MFD functions, such as maps, fish finder
and graphing capabilities are also accessible,
thanks to the in-built 10MHz GPS system with its
unique dual antenna.

PREMIUM DIGITAL NETWORK GAUGE (6Y9)
Featuring a 5” full-colour, high-resolution LCD display, the 6Y9 Premium Digital Network Gauge II can be configured to display
multiple combinations of information based on the operator's preference both for the outboard(s) and the boat status.
Available as a convenient Rigging Kit (see page 30)

REGULAR INDICATION:
• Shift position
• Engine speed
• Trim position
• Engine temperature
• Cooling water pressure
• Oil pressure
• Main battery voltage
• Sub-battery voltage
• Boat speed
• Fuel economy
• Fuel consumption DESCRIPTION PART NO PRICE
• Fuel flow 6Y9 Colour Display 6Y9-83710-13-00
• Engine operating hours Replacement Cover 6Y9-87278-00-00
• Trip meter Replacement Bezel 6Y9-83512-00-00
• Available fuel volume
• Connections for up to 4 tanks ALERT INDICATION: CONDITION INDICATION:
• Seawater temperature • Overheat • Yamaha security system on duty
• Depth • Low oil pressure • Under warming up control
• Maintenance interval notice • Low voltage • Under synchronization control
• Trolling speed adjustment • Water in fuel
(depending on model) • Check engine
