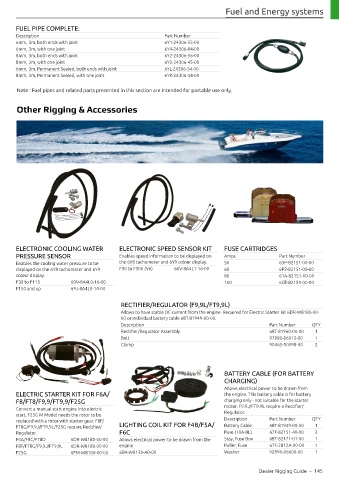

Page 147 - Yamaha Marine Zubehör 2021

Fuel and Energy systems

FUEL PIPE COMPLETE:
Description Part Number
6mm, 3m, both ends with joint 6Y1-24306-55-00
6mm, 3m, with one joint 6Y4-24306-84-00
8mm, 3m, both ends with joint 6Y2-24306-56-00
8mm, 3m, with one joint 6Y2-24306-45-00
6mm, 3m, Permanent Sealed, both ends with joint 6YL-24306-54-00
8mm, 3m, Permanent Sealed, with one joint 6YK-24306-44-00

Note : Fuel pipes and related parts presented in this section are intended for portable use only.

Other Rigging & Accessories

ELECTRONIC COOLING WATER ELECTRONIC SPEED SENSOR KIT FUSE CARTRIDGES
PRESSURE SENSOR Enables speed information to be displayed on Amps Part Number
Enables the cooling water pressure to be the 6Y8 tachometer and 6Y9 colour display. 50 63P-82151-00-00
displayed on the 6Y8 tachometer and 6Y9 F30 to F300 (V6) 60V-8A4L1-16-00 60 6P2-82151-00-00
colour display. 80 61A-82151-00-00
F30 to F115 60V-8A4L0-16-00 100 6CE-82151-00-00
F150 and up 69J-8A4L0-14-00

RECTIFIER/REGULATOR (F9,9L/FT9,9L)
Allows to have stable DC current from the engine. Required for Electric Starter Kit 6DR-W8180-00-
00 or individual battery cable 68T-81949-00-00.
Description Part Number QTY
Rectifier/Regulator Assembly 68T-81960-00-00 1
Bolt 97080-06012-00 1
Clamp 90465-10098-00 2

BATTERY CABLE (FOR BATTERY
CHARGING)
Allows electrical power to be drawn from
ELECTRIC STARTER KIT FOR F6A/ the engine. This battery cable is for battery
F8/FT8/F9,9/FT9,9/F25G charging only - not suitable for the starter
motor. F9.9J/FT9.9L require a Rectifier/
Convert a manual start engine into electric
start. F25G M Model needs the rotor to be Regulator.
Description Part Number QTY
replaced with a rotor with starter gear. F8F/
FT8G/F9,9J/FT9,9L/F25G require Rectifier/ LIGHTING COIL KIT FOR F4B/F5A/ Battery Cable 68T-81949-00-00 1
Regulator. F6C Fuse (10A-BL) 67F-82151-40-00 2
F6A/F8C/FT8D 6DR-W8180-00-00 Allows electrical power to be drawn from the Stay, Fuse Box 68T-82171-01-00 1
F8F/FT8G/F9,9J/FT9,9L 6DR-W8180-00-00 engine Puller, Fuse 67F-2812A-00-00 1
F25G 6FM-W8180-00-00 6BX-W8130-A0-00 Washer 92990-06600-00 1

Dealer Rigging Guide – 145
