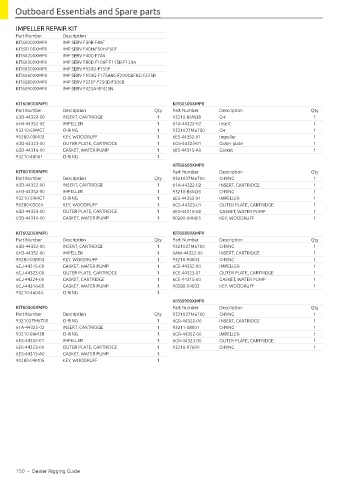

Page 152 - Yamaha Marine Zubehör 2021

Outboard Essentials and Spare parts

IMPELLER REPAIR KIT
Part Number Description
KIT60000XMP0 IMP SERV F30B-F40F
KIT60100XMP0 IMP SERV F40H-F50H-F60F
KIT60200XMP0 IMP SERV F40G-F70A
KIT60300XMP0 IMP SERV F80D-F100F-F115B-F130A
KIT60500XMP0 IMP SERV F150D-F150F
KIT60600XMP0 IMP SERV F150G-F175A&C-F200C&F&G-F225B
KIT60800XMP0 IMP SERV F225F-F250D-F300B
KIT60900XMP0 IMP SERV F425A-XF425N

KIT60000XMP0 KIT60500XMP0
Part Number Description Qty Part Number Description Qty
63D-44322-00 INSERT, CARTRIDGE 1 93210-86M38 O-r 1
6H4-44352-02 IMPELLER 1 61A-44322-02 Insert 1
93210-59MG7 O-RING 1 9321037M6700 O-r 1
90280-03M03 KEY, WOODRUFF 1 6E5-44352-01 Impeller 1
63D-44323-00 OUTER PLATE, CARTRIDGE 1 6G5-44323-01 Outer plate 1
63D-44316-00 GASKET, WATER PUMP 1 6E5-44315-A0 Gasket 1
93210-48001 O-RING 1
KIT60600XMP0
KIT60100XMP0 Part Number Description Qty
Part Number Description Qty 9321037M6700 O-RING 1
63D-44322-00 INSERT, CARTRIDGE 1 61A-44322-02 INSERT, CARTRIDGE 1
6H3-44352-00 IMPELLER 1 93210-86M38 O-RING 1
93210-59MG7 O-RING 1 6E5-44352-01 IMPELLER 1
90280-03024 KEY, WOODRUFF 1 6G5-44323-01 OUTER PLATE, CARTRIDGE 1
63D-44323-00 OUTER PLATE, CARTRIDGE 1 6E5-44315-A0 GASKET, WATER PUMP 1
63D-44316-00 GASKET, WATER PUMP 1 90280-04M05 KEY, WOODRUFF 1

KIT60200XMP0 KIT60800XMP0
Part Number Description Qty Part Number Description Qty
63D-44322-00 INSERT, CARTRIDGE 1 9321037M6700 O-RING 1
6H3-44352-00 IMPELLER 1 6AW-44322-00 INSERT, CARTRIDGE 1
90280-03M03 KEY, WOODRUFF 1 93210-94003 O-RING 1
6CJ-44315-00 GASKET, WATER PUMP 1 6CE-44352-00 IMPELLER 1
6CJ-44323-00 OUTER PLATE, CARTRIDGE 1 6CE-44323-01 OUTER PLATE, CARTRIDGE 1
6CJ-44324-00 GASKET, CARTRIDGE 1 6CE-44315-00 GASKET, WATER PUMP 1
6CJ-44316-00 GASKET, WATER PUMP 1 90280-04002 KEY, WOODRUFF 1
93210-46044 O-RING 1
KIT60900XMP0
KIT60300XMP0 Part Number Description Qty
Part Number Description Qty 9321037M6700 O-RING 1
9321037M6700 O-RING 1 6GR-44322-00 INSERT, CARTRIDGE 1
61A-44322-02 INSERT, CARTRIDGE 1 93211-08001 O-RING 1
93210-86M38 O-RING 1 6GR-44352-00 IMPELLER 1
6E5-44352-01 IMPELLER 1 6GR-44323-00 OUTER PLATE, CARTRIDGE 1
6EK-44323-00 OUTER PLATE, CARTRIDGE 1 93210-97690 O-RING 1
6E5-44315-A0 GASKET, WATER PUMP 1
90280-04M05 KEY, WOODRUFF 1

150 – Dealer Rigging Guide
