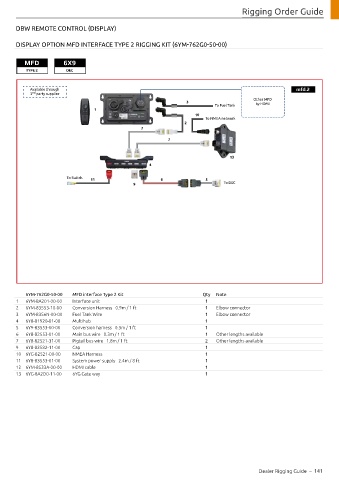

Rigging Order Guide

DBW REMOTE CONTROL (DISPLAY)

DISPLAY OPTION MFD INTERFACE TYPE 2 RIGGING KIT (6YM-762G0-50-00)

MFD 6X9
TYPE 2 DEC

Available through mfd.2
rd
3 party supplier
Other MFD
3 by HDMI
To Fuel Tank
1
10
To NMEA network
2
7
7

13
4

To Switch
11 6 5
9 To DEC

6YM-762G0-50-00 MFD interface Type 2 Kit Qty Note
1 6YM-8A201-00-00 Interface unit 1
2 6YM-83553-10-00 Conversion Harness 0.9m / 1 ft 1 Elbow connector
3 6YM-8356N-00-00 Fuel Tank Wire 1 Elbow connector
4 6Y8-81920-01-00 Multihub 1
5 6Y9-83553-00-00 Conversion harness 0.3m / 1 ft 1
6 6Y8-82553-01-00 Main bus wire 0.3m / 1 ft 1 Other lengths available
7 6Y8-82521-31-00 Pigtail bus wire 1.8m / 1 ft 2 Other lengths available
9 6Y8-82582-11-00 Cap 1
10 6YG-82521-00-00 NMEA Harness 1
11 6Y8-83553-01-00 System power supply 2.4m / 8 ft 1
12 6YM-8533A-00-00 HDMI cable 1
13 6YG-8A2D0-11-00 6YG Gate way 1

Dealer Rigging Guide – 141
