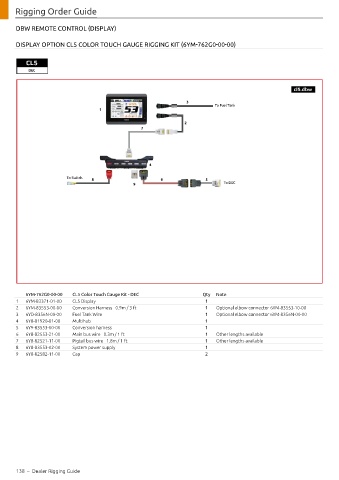

Rigging Order Guide
DBW REMOTE CONTROL (DISPLAY)
DISPLAY OPTION CL5 COLOR TOUCH GAUGE RIGGING KIT (6YM-762G0-00-00)
CL5
DEC
cl5.dbw
3
To Fuel Tank
1
2
7
4
To Switch
8 6 5
9 To DEC
6YM-762G0-00-00 CL5 Color Touch Gauge Kit - DEC Qty Note
1 6YM-83371-01-00 CL5 Display 1
2 6YM-83553-00-00 Conversion Harness 0.9m / 3 ft 1 Optional elbow connector 6YM-83553-10-00
3 6YD-8356N-00-00 Fuel Tank Wire 1 Optional elbow connector 6YM-8356N-00-00
4 6Y8-81920-01-00 Multihub 1
5 6Y9-83553-00-00 Conversion harness 1
6 6Y8-82553-21-00 Main bus wire 0.3m / 1 ft 1 Other lengths available
7 6Y8-82521-11-00 Pigtail bus wire 1.8m / 1 ft 1 Other lengths available
8 6Y8-83553-02-00 System power supply 1
9 6Y8-82582-11-00 Cap 2
