P. 142

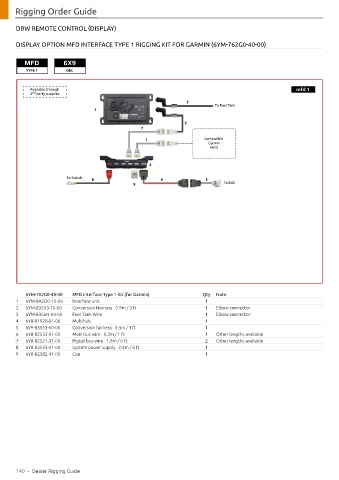

Rigging Order Guide
DBW REMOTE CONTROL (DISPLAY)
DISPLAY OPTION MFD INTERFACE TYPE 1 RIGGING KIT FOR GARMIN (6YM-762G0-40-00)
MFD 6X9
TYPE 1 DEC
Available through mfd.1
rd
3 party supplier
3
To Fuel Tank
1
2
7
7 Compatible
Garmin
MFD
4
To Switch
8 6 5
9 To DEC
6YM-762G0-40-00 MFD interface Type 1 Kit (for Garmin) Qty Note
1 6YM-8A2D0-10-00 Interface unit 1
2 6YM-83553-10-00 Conversion Harness 0.9m / 3 ft 1 Elbow connector
3 6YM-8356N-00-00 Fuel Tank Wire 1 Elbow connector
4 6Y8-81920-01-00 Multihub 1
5 6Y9-83553-00-00 Conversion harness 0.3m / 1 ft 1
6 6Y8-82553-01-00 Main bus wire 0.3m / 1 ft 1 Other lengths available
7 6Y8-82521-31-00 Pigtail bus wire 1.8m / 6 ft 2 Other lengths available
8 6Y8-83553-01-00 System power supply 2.4m / 8 ft 1
9 6Y8-82582-11-00 Cap 1
