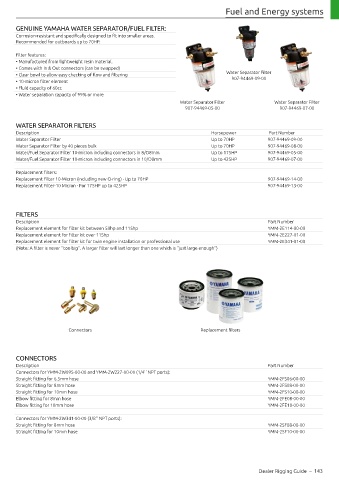

Page 145 - Yamaha Marine Zubehör 2021

Fuel and Energy systems

GENUINE YAMAHA WATER SEPARATOR/FUEL FILTER:
Corrosion-resistant and specifically designed to fit into smaller areas.
Recommended for outboards up to 70HP.

Filter features:
• Manufactured from lightweight resin material.
• Comes with In & Out connectors (can be swapped)
• Clear bowl to allow easy checking of flow and filtering Water Separator Filter
• 10-micron filter element 907-94469-09-00
• Fluid capacity of 60cc
• Water separation capacity of 99% or more
Water Separator Filter Water Separator Filter
907-94469-05-00 907-94469-07-00

WATER SEPARATOR FILTERS
Description Horsepower Part Number
Water Separator Filter Up to 70HP 907-94469-09-00
Water Separator Filter by 40 pieces bulk Up to 70HP 907-94469-08-00
Water/Fuel Separator Filter 10-micron including connectors in 8/O8mm Up to 175HP 907-94469-05-00
Water/Fuel Separator Filter 10-micron including connectors in 10/O8mm Up to 425HP 907-94469-07-00

Replacement filters:
Replacement Filter 10-Micron (including new O-ring) - Up to 70HP 907-94469-14-00
Replacement Filter-10 Micron - For 175HP up to 425HP 907-94469-13-00

FILTERS
Description Part Number
Replacement element for filter kit between 50hp and 115hp YMM-2E114-00-00
Replacement element for filter kit over 115hp YMM-2E227-01-00
Replacement element for filter kit for twin engine installation or professional use YMM-2E341-01-00
(Note: A filter is never ''too big''. A larger filter will last longer than one which is ''just large enough'')

Connectors Replacement filters

CONNECTORS
Description Part Number
Connectors for YMM-2W095-00-00 and YMM-2W227-00-00 (1/4'' NPT ports):
Straight fitting for 6.5mm hose YMM-2FS06-00-00
Straight fitting for 8mm hose YMM-2FS08-00-00
Straight fitting for 10mm hose YMM-2FS10-00-00
Elbow fitting for 8mm hose YMM-2FE08-00-00
Elbow fitting for 10mm hose YMM-2FE10-00-00

Connectors for YMM-2W341-00-00 (3/8'' NPT ports):
Straight fitting for 8mm hose YMM-2SF08-00-00
Straight fitting for 10mm hose YMM-2SF10-00-00

Dealer Rigging Guide – 143
