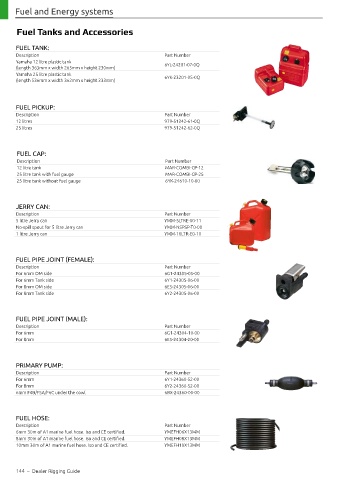

Fuel and Energy systems

Fuel Tanks and Accessories

FUEL TANK:
Description Part Number
Yamaha 12 litre plastic tank 6YL-24201-07-0Q
(length 363mm x width 265mm x height 230mm)
Yamaha 25 litre plastic tank 6YK-23201-05-0Q
(length 536mm x width 362mm x height 233mm)

FUEL PICKUP:
Description Part Number
12 litres 979-51242-61-0Q
25 litres 979-51242-62-0Q

FUEL CAP:
Description Part Number
12 litre tank MAR-COMBI-CP-12
25 litre tank with fuel gauge MAR-COMBI-CP-25
25 litre tank without fuel gauge 6YK-24610-10-00

JERRY CAN:
Description Part Number
5 litre Jerry can YMM-5LTRE-00-11
No-spill spout for 5 litre Jerry can YMM-NSPSP-T0-00
1 litre Jerry can YMM-10LTR-E0-10

FUEL PIPE JOINT (FEMALE):
Description Part Number
For 6mm OM side 6G1-24305-05-00
For 6mm Tank side 6Y1-24305-06-00
For 8mm OM side 6E5-24305-06-00
For 8mm Tank side 6Y2-24305-06-00

FUEL PIPE JOINT (MALE):
Description Part Number
For 6mm 6G1-24304-10-00
For 8mm 6E5-24304-20-00

PRIMARY PUMP:
Description Part Number
For 6mm 6Y1-24360-52-00
For 8mm 6Y2-24360-52-00
6mm F4B/F5A/F6C under the cowl 6BX-24360-00-00

FUEL HOSE:
Description Part Number
6mm 30m of A1 marine fuel hose. Iso and CE certified. YMEFH06X13MM
8mm 30m of A1 marine fuel hose. Iso and CE certified. YMEFH08X13MM
10mm 30m of A1 marine fuel hose. Iso and CE certified. YMEFH10X13MM

144 – Dealer Rigging Guide
