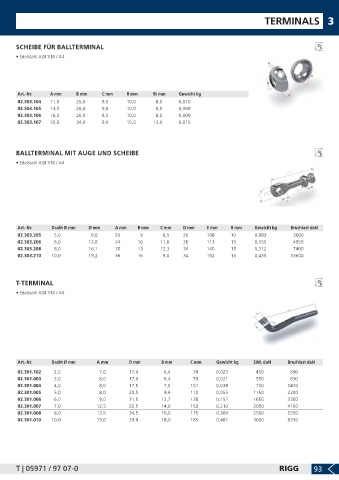

Page 95 - LankhorstHohorst Katalog 2019-2020

TERMINALS 3

SCHEIBE FÜR BALLTERMINAL
• Edelstahl AISI 316 / A4

Art.-Nr. A mm B mm C mm R mm Ri mm Gewicht kg
02.303.104 11,0 26,0 9,5 10,0 8,0 0,010
02.303.105 13,0 26,0 9,0 10,0 8,0 0,009
02.303.106 16,0 26,0 8,5 10,0 8,0 0,009
02.303.107 20,0 34,0 9,0 15,0 13,0 0,015

BALLTERMINAL MIT AUGE UND SCHEIBE
• Edelstahl AISI 316 / A4

Art.-Nr. Draht Ø mm Ø mm A mm B mm C mm D mm E mm R mm Gewicht kg Bruchlast daN
02.303.205 5,0 9,6 20 9 8,5 26 108 10 0,083 3600
02.303.206 6,0 12,8 24 10 11,0 26 113 13 0,155 4950
02.303.208 8,0 16,1 30 13 12,3 34 140 15 0,312 7400
02.303.210 10,0 19,2 36 16 9,0 34 152 15 0,435 13600

T-TERMINAL
• Edelstahl AISI 316 / A4

Art.-Nr. Draht Ø mm A mm D mm B mm C mm Gewicht kg SWL daN Bruchlast daN
02.301.102 2,5 7,0 17,0 6,4 78 0,023 450 690
02.301.003 3,0 8,0 17,0 6,4 78 0,021 550 830
02.301.004 4,0 8,0 17,5 7,5 101 0,038 750 1470
02.301.005 5,0 8,0 20,5 9,0 110 0,055 1150 2300
02.301.006 6,0 9,0 31,5 12,7 138 0,157 1650 3300
02.301.007 7,0 12,5 32,5 14,0 150 0,210 2050 4100
02.301.008 8,0 13,5 34,5 16,0 175 0,309 2500 5350
02.301.010 10,0 15,0 39,0 18,0 185 0,407 3600 8350

T | 05971 / 97 07-0 RIGG 93
