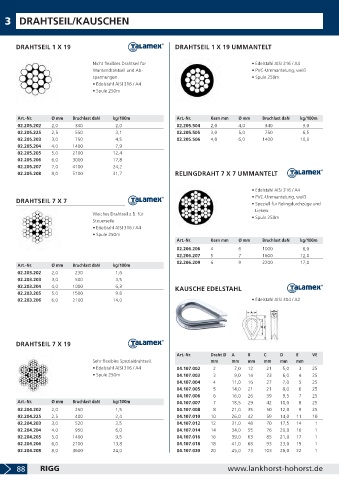

Page 90 - LankhorstHohorst Katalog 2019-2020

3 DRAHTSEIL/KAUSCHEN

DRAHTSEIL 1 X 19 DRAHTSEIL 1 X 19 UMMANTELT

Nicht flexibles Drahtseil für • Edelstahl AISI 316 / A4
Wantendrahtseil und Ab- • PVC-Ummantelung, weiß
spannungen. • Spule 250m
• Edelstahl AISI 316 / A4
• Spule 250m

Art.-Nr. Ø mm Bruchlast daN kg/100m Art.-Nr. Kern mm Ø mm Bruchlast daN kg/100m
02.205.202 2,0 340 2,0 02.205.504 2,0 4,0 340 3,0
02.205.225 2,5 550 3,1 02.205.505 3,0 5,0 750 6,5
02.205.203 3,0 750 4,5 02.205.506 4,0 6,0 1400 10,0
02.205.204 4,0 1400 7,9
02.205.205 5,0 2100 12,4
02.205.206 6,0 3000 17,8
02.205.207 7,0 4100 24,2
02.205.208 8,0 5100 31,7 RELINGDRAHT 7 X 7 UMMANTELT

• Edelstahl AISI 316 / A4
• PVC-Ummantelung, weiß
DRAHTSEIL 7 X 7
• Speziell für Relingdurchzüge und
Lieken.
Weiches Drahtseil z.B. für
• Spule 250m
Steuerseile.
• Edelstahl AISI 316 / A4
• Spule 250m
Art.-Nr. Kern mm Ø mm Bruchlast daN kg/100m
02.206.206 4 6 1000 8,0
02.206.207 5 7 1600 12,0
02.206.209 6 9 2200 17,0
Art.-Nr. Ø mm Bruchlast daN kg/100m
02.203.202 2,0 230 1,6
02.203.203 3,0 500 3,5
02.203.204 4,0 1000 6,3
KAUSCHE EDELSTAHL
02.203.205 5,0 1500 9,8
02.203.206 6,0 2100 14,0 • Edelstahl AISI 304 / A2

DRAHTSEIL 7 X 19
Art.-Nr. Draht Ø A B C D E VE
Sehr flexibles Spezialdrahtseil. mm mm mm mm mm mm
• Edelstahl AISI 316 / A4 04.107.002 2 7,0 12 21 5,0 3 25
• Spule 250m 04.107.003 3 9,0 14 23 6,0 4 25
04.107.004 4 11,0 16 27 7,0 5 25
04.107.005 5 14,0 21 21 8,0 6 25
04.107.006 6 16,0 26 39 9,5 7 25
Art.-Nr. Ø mm Bruchlast daN kg/100m 04.107.007 7 18,5 29 42 10,0 8 25
02.204.202 2,0 250 1,5 04.107.008 8 21,0 35 50 12,0 9 25
02.204.225 2,5 400 2,4 04.107.010 10 26,0 42 59 14,0 11 10
02.204.203 3,0 520 3,5 04.107.012 12 31,0 48 70 17,5 14 1
02.204.204 4,0 950 6,0 04.107.014 14 34,0 55 76 20,0 16 1
02.204.205 5,0 1400 9,5 04.107.016 16 39,0 63 85 21,0 17 1
02.204.206 6,0 2100 13,8 04.107.018 18 41,0 68 93 23,0 19 1
02.204.208 8,0 3600 24,0 04.107.020 20 45,0 73 103 26,0 22 1

88 RIGG www.lankhorst-hohorst.de
