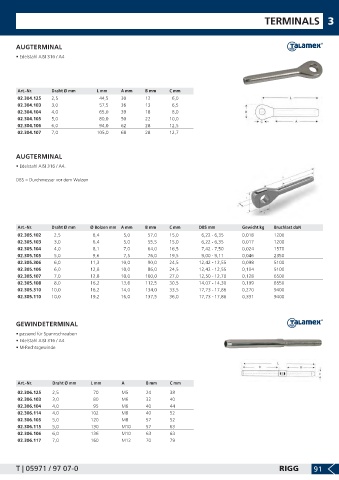

Page 93 - LankhorstHohorst Katalog 2019-2020

TERMINALS 3

AUGTERMINAL
• Edelstahl AISI 316 / A4

Art.-Nr. Draht Ø mm L mm A mm B mm C mm
02.304.125 2,5 44,5 30 13 6,0
02.304.103 3,0 57,5 36 13 6,5
02.304.104 4,0 65,0 39 18 8,0
02.304.105 5,0 80,0 50 22 10,0
02.304.106 6,0 94,0 62 28 12,5
02.304.107 7,0 105,0 68 28 12,7

AUGTERMINAL
• Edelstahl AISI 316 / A4.

DBS = Durchmesser vor dem Walzen

Art.-Nr. Draht Ø mm Ø Bolzen mm A mm B mm C mm DBS mm Gewicht kg Bruchlast daN
02.305.102 2,5 6,4 5,0 57,0 15,0 6,22 - 6,35 0,018 1200
02.305.103 3,0 6,4 5,0 55,5 15,0 6,22 - 6,35 0,017 1200
02.305.104 4,0 8,1 7,0 64,0 16,5 7,42 - 7,50 0,024 1570
02.305.105 5,0 9,6 7,5 76,0 19,5 9,00 - 9,11 0,046 2350
02.305.306 6,0 11,3 10,0 90,0 24,5 12,42 - 12,55 0,098 5100
02.305.106 6,0 12,8 10,0 86,0 24,5 12,42 - 12,55 0,104 5100
02.305.107 7,0 12,8 10,0 100,0 27,0 12,50 - 12,70 0,128 6500
02.305.108 8,0 16,2 13,6 112,5 30,5 14,07 - 14,30 0,199 8550
02.305.310 10,0 16,2 14,0 134,0 33,5 17,73 - 17,86 0,270 9400
02.305.110 10,0 19,2 16,0 137,5 36,0 17,73 - 17,86 0,331 9400

GEWINDETERMINAL

• passend für Spannschrauben
• Edelstahl AISI 316 / A4
• M-Rechtsgewinde

Art.-Nr. Draht Ø mm L mm A B mm C mm
02.306.125 2,5 70 M5 24 38
02.306.103 3,0 80 M6 32 40
02.306.104 4,0 95 M6 40 44
02.306.114 4,0 102 M8 40 52
02.306.105 5,0 120 M8 57 52
02.306.115 5,0 130 M10 57 63
02.306.106 6,0 136 M10 63 63
02.306.117 7,0 160 M12 70 79
