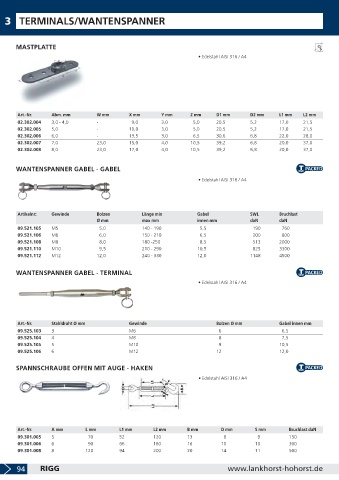

3 TERMINALS/WANTENSPANNER
MASTPLATTE
• Edelstahl AISI 316 / A4
Art.-Nr. Abm. mm W mm X mm Y mm Z mm D1 mm D2 mm L1 mm L2 mm
02.302.004 3,0 - 4,0 - 9,0 3,0 5,0 20,5 5,2 17,0 21,5
02.302.005 5,0 - 10,0 3,0 5,0 20,5 5,2 17,0 21,5
02.302.006 6,0 - 13,5 3,0 6,5 30,6 6,8 22,0 28,0
02.302.007 7,0 23,0 15,0 4,0 10,5 39,2 6,8 20,0 37,0
02.302.008 8,0 23,0 17,0 4,0 10,5 39,2 6,8 20,0 37,0
WANTENSPANNER GABEL - GABEL
• Edelstahl AISI 316 / A4
Artikelnr: Gewinde Bolzen Länge min Gabel SWL Bruchlast
Ø mm max mm innen mm daN daN
09.521.105 M5 5,0 140 - 190 5,5 190 760
09.521.106 M6 6,0 150 - 210 6,5 200 800
09.521.108 M8 8,0 180 -250 8,5 513 2000
09.521.110 M10 9,5 210 - 290 10,5 825 3300
09.521.112 M12 12,0 240 - 330 12,0 1148 4500
WANTENSPANNER GABEL - TERMINAL
• Edelstahl AISI 316 / A4
Art.-Nr. Stahldraht Ø mm Gewinde Bolzen Ø mm Gabel innen mm
09.525.103 3 M6 6 6,5
09.525.104 4 M8 8 7,5
09.525.105 5 M10 9 10,5
09.525.106 6 M12 12 12,0
SPANNSCHRAUBE OFFEN MIT AUGE - HAKEN
• Edelstahl AISI 316 / A4
Art.-Nr. A mm L mm L1 mm L2 mm B mm D mm S mm Bruchlast daN
09.301.005 5 70 52 120 13 8 9 150
09.301.006 6 90 66 160 16 10 10 300
09.301.008 8 120 94 200 20 14 11 500
94 RIGG www.lankhorst-hohorst.de
