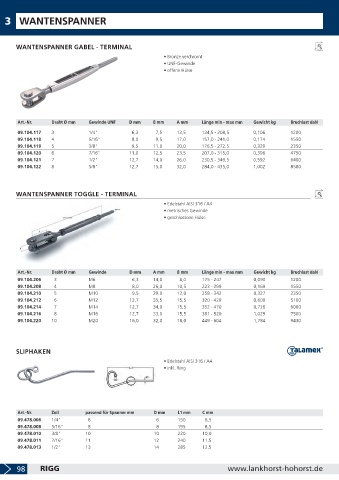

Page 100 - LankhorstHohorst Katalog 2019-2020
P. 100
3 WANTENSPANNER
WANTENSPANNER GABEL - TERMINAL
• Bronze verchromt
• UNF-Gewinde
• offene Hülse
Art.-Nr. Draht Ø mm Gewinde UNF D mm B mm A mm Länge min - max mm Gewicht kg Bruchlast daN
09.104.117 3 1/4" 6,3 7,5 13,5 134,5 - 208,5 0,106 1200
09.104.118 4 5/16" 8,0 9,5 17,0 157,0 - 241,0 0,174 1550
09.104.119 5 3/8" 9,5 11,0 20,0 176,5 - 272,5 0,329 2350
09.104.120 6 7/16" 11,0 12,5 23,5 207,0 - 315,0 0,396 4750
09.104.121 7 1/2" 12,7 14,0 26,0 230,5 - 349,5 0,592 6400
09.104.122 8 5/8" 12,7 15,0 32,0 284,0 - 435,0 1,002 8580
WANTENSPANNER TOGGLE - TERMINAL
• Edelstahl AISI 316 / A4
• metrisches Gewinde
• geschlossene Hülse
Art.-Nr. Draht Ø mm Gewinde D mm A mm B mm Länge min - max mm Gewicht kg Bruchlast daN
09.104.206 3 M6 6,3 14,0 8,0 175 - 247 0,090 1200
09.104.208 4 M8 8,0 26,0 10,5 223 - 299 0,169 1550
09.104.210 5 M10 9,5 29,0 12,0 258 - 343 0,327 2350
09.104.212 6 M12 12,7 35,5 15,5 320 - 429 0,609 5100
09.104.214 7 M14 12,7 34,0 15,5 352 - 470 0,728 6000
09.104.216 8 M16 12,7 33,0 15,5 381 - 520 1,029 7500
09.104.220 10 M20 16,0 32,0 18,0 449 - 604 1,784 9430
SLIPHAKEN
• Edelstahl AISI 316 / A4
• inkl. Ring
Art.-Nr. Zoll passend für Spanner mm D mm L1 mm C mm
09.478.006 1/4" 6 6 150 6,5
09.478.008 5/16" 8 8 195 8,5
09.478.010 3/8" 10 10 220 10,0
09.478.011 7/16" 11 12 240 11,5
09.478.013 1/2" 13 14 285 12,5
