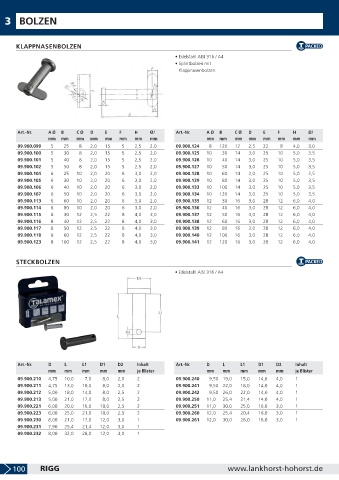

3 BOLZEN

KLAPPNASENBOLZEN
• Edelstahl AISI 316 / A4
• Splintbolzen mit
Klappnasenbolzen.

Art.-Nr. A Ø B C Ø D E F H Ø/ Art.-Nr. A Ø B C Ø D E F H Ø/
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
09.900.099 5 25 8 2,0 15 5 2,5 2,0 09.900.124 8 120 12 2,5 22 8 4,0 3,0
09.900.100 5 30 8 2,0 15 5 2,5 2,0 09.900.125 10 30 14 3,0 25 10 5,0 3,5
09.900.101 5 40 8 2,0 15 5 2,5 2,0 09.900.126 10 40 14 3,0 25 10 5,0 3,5
09.900.102 5 50 8 2,0 15 5 2,5 2,0 09.900.127 10 50 14 3,0 25 10 5,0 3,5
09.900.104 6 25 10 2,0 20 6 3,0 2,0 09.900.128 10 60 14 3,0 25 10 5,0 3,5
09.900.105 6 30 10 2,0 20 6 3,0 2,0 09.900.129 10 80 14 3,0 25 10 5,0 3,5
09.900.106 6 40 10 2,0 20 6 3,0 2,0 09.900.133 10 100 14 3,0 25 10 5,0 3,5
09.900.107 6 50 10 2,0 20 6 3,0 2,0 09.900.134 10 120 14 3,0 25 10 5,0 3,5
09.900.113 6 60 10 2,0 20 6 3,0 2,0 09.900.135 12 30 16 3,0 28 12 6,0 4,0
09.900.114 6 80 10 2,0 20 6 3,0 2,0 09.900.136 12 40 16 3,0 28 12 6,0 4,0
09.900.115 8 30 12 2,5 22 8 4,0 3,0 09.900.137 12 50 16 3,0 28 12 6,0 4,0
09.900.116 8 40 12 2,5 22 8 4,0 3,0 09.900.138 12 60 16 3,0 28 12 6,0 4,0
09.900.117 8 50 12 2,5 22 8 4,0 3,0 09.900.139 12 80 16 3,0 28 12 6,0 4,0
09.900.118 8 60 12 2,5 22 8 4,0 3,0 09.900.140 12 100 16 3,0 28 12 6,0 4,0
09.900.123 8 100 12 2,5 22 8 4,0 3,0 09.900.141 12 120 16 3,0 28 12 6,0 4,0

STECKBOLZEN
• Edelstahl AISI 316 / A4

Art.-Nr. D L L1 D1 D2 Inhalt Art.-Nr. D L L1 D1 D2 Inhalt
mm mm mm mm mm je Blister mm mm mm mm mm je Blister
09.900.210 4,75 10,0 7,0 8,0 2,0 2 09.900.240 9,50 19,0 15,0 14,0 4,0 1
09.900.211 4,75 13,0 10,0 8,0 2,0 2 09.900.241 9,50 22,0 18,0 14,0 4,0 1
09.900.212 5,00 18,0 14,0 8,0 2,5 2 09.900.242 9,50 26,0 22,0 14,0 4,0 1
09.900.213 5,00 21,0 17,0 8,0 2,5 2 09.900.250 11,0 25,4 21,4 14,0 4,0 1
09.900.221 6,00 20,0 16,0 10,0 2,5 2 09.900.251 11,0 30,0 25,0 16,0 3,0 1
09.900.223 6,00 25,0 21,0 10,0 2,5 2 09.900.260 12,0 25,4 20,4 16,0 3,0 1
09.900.230 8,00 21,0 17,0 12,0 3,0 1 09.900.261 12,0 30,0 26,0 16,0 3,0 1
09.900.231 7,90 25,4 21,4 12,0 3,0 1
09.900.232 8,00 32,0 28,0 12,0 3,0 1
