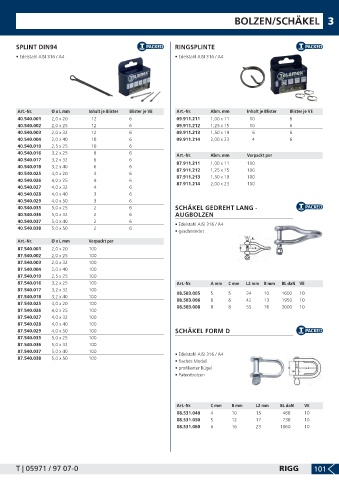

Page 103 - LankhorstHohorst Katalog 2019-2020

BOLZEN/SCHÄKEL 3

SPLINT DIN94 RINGSPLINTE
• Edelstahl AISI 316 / A4 • Edelstahl AISI 316 / A4

Art.-Nr. Ø x L mm Inhalt je Blister Blister je VE Art.-Nr. Abm. mm Inhalt je Blister Blister je VE
40.540.001 2,0 x 20 12 6 09.911.211 1,00 x 11 10 6
40.540.002 2,0 x 25 12 6 09.911.212 1,25 x 15 10 6
40.540.003 2,0 x 32 12 6 09.911.213 1,50 x 19 6 6
40.540.004 2,0 x 40 10 6 09.911.214 2,00 x 23 4 6
40.540.010 2,5 x 25 10 6
40.540.016 3,2 x 25 8 6
Art.-Nr. Abm. mm Verpackt per
40.540.017 3,2 x 32 6 6
87.911.211 1,00 x 11 100
40.540.018 3,2 x 40 6 6
87.911.212 1,25 x 15 100
40.540.025 4,0 x 20 4 6
87.911.213 1,50 x 19 100
40.540.026 4,0 x 25 4 6
87.911.214 2,00 x 23 100
40.540.027 4,0 x 32 4 6
40.540.028 4,0 x 40 3 6
40.540.029 4,0 x 50 3 6
40.540.035 5,0 x 25 2 6 SCHÄKEL GEDREHT LANG -
40.540.036 5,0 x 32 2 6 AUGBOLZEN
40.540.037 5,0 x 40 2 6
• Edelstahl AISI 316 / A4
40.540.038 5,0 x 50 2 6
• geschmiedet
Art.-Nr. Ø x L mm Verpackt per
87.540.001 2,0 x 20 100
87.540.002 2,0 x 25 100
87.540.003 2,0 x 32 100
87.540.004 2,0 x 40 100
87.540.010 2,5 x 25 100
87.540.016 3,2 x 25 100 Art.-Nr. A mm C mm L2 mm B mm BL daN VE
87.540.017 3,2 x 32 100
08.503.005 5 5 34 10 1600 10
87.540.018 3,2 x 40 100
08.503.006 6 6 42 13 1950 10
87.540.025 4,0 x 20 100
08.503.008 8 8 55 16 3000 10
87.540.026 4,0 x 25 100
87.540.027 4,0 x 32 100
87.540.028 4,0 x 40 100
87.540.029 4,0 x 50 100 SCHÄKEL FORM D
87.540.035 5,0 x 25 100
87.540.036 5,0 x 32 100
87.540.037 5,0 x 40 100
• Edelstahl AISI 316 / A4
87.540.038 5,0 x 50 100
• flaches Modell
• profilierter Bügel
• Patentbolzen

Art.-Nr. C mm B mm L2 mm BL daN VE
08.531.040 4 10 15 460 10
08.531.050 5 12 17 730 10
08.531.060 6 16 23 1060 10
