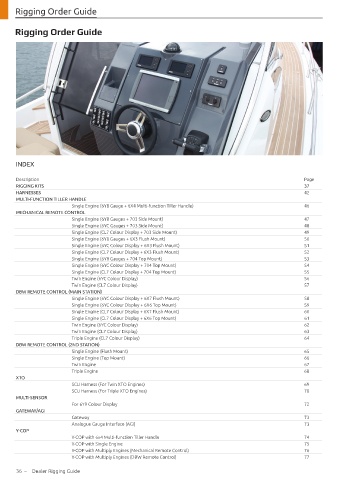

Page 38 - Yamaha Marine Zubehör Katalog 2020

Rigging Order Guide

Rigging Order Guide

INDEX

Description Page
RIGGING KITS 37
HARNESSES 42
MULTI-FUNCTION TILLER HANDLE
Single Engine (6Y8 Gauge + 6X4 Multi-function Tiller Handle) 46
MECHANICAL REMOTE CONTROL
Single Engine (6Y8 Gauges + 703 Side Mount) 47
Single Engine (6YC Gauges + 703 Side Mount) 48
Single Engine (CL7 Colour Display + 703 Side Mount) 49
Single Engine (6Y8 Gauges + 6X3 Flush Mount) 50
Single Engine (6YC Colour Display + 6X3 Flush Mount) 51
Single Engine (CL7 Colour Display + 6X3 Flush Mount) 52
Single Engine (6Y8 Gauges + 704 Top Mount) 53
Single Engine (6YC Colour Display + 704 Top Mount) 54
Single Engine (CL7 Colour Display + 704 Top Mount) 55
Twin Engine (6YC Colour Display) 56
Twin Engine (CL7 Colour Display) 57
DBW REMOTE CONTROL (MAIN STATION)
Single Engine (6YC Colour Display + 6X7 Flush Mount) 58
Single Engine (6YC Colour Display + 6X6 Top Mount) 59
Single Engine (CL7 Colour Display + 6X7 Flush Mount) 60
Single Engine (CL7 Colour Display + 6X6 Top Mount) 61
Twin Engine (6YC Colour Display) 62
Twin Engine (CL7 Colour Display) 63
Triple Engine (CL7 Colour Display) 64
DBW REMOTE CONTROL (2ND STATION)
Single Engine (Flush Mount) 65
Single Engine (Top Mount) 66
Twin Engine 67
Triple Engine 68
XTO
SCU Harness (For Twin XTO Engines) 69
SCU Harness (For Triple XTO Engines) 70
MULTI-SENSOR
For 6Y9 Colour Display 72
GATEWAY/AGI
Gateway 73
Analogue Gauge Interface (AGI) 73
Y-COP
Y-COP with 6x4 Multi-function Tiller Handle 74
Y-COP with Single Engine 75
Y-COP with Multiply Engines (Mechanical Remote Control) 76
Y-COP with Multiply Engines (DBW Remote Control) 77
36 – Dealer Rigging Guide
