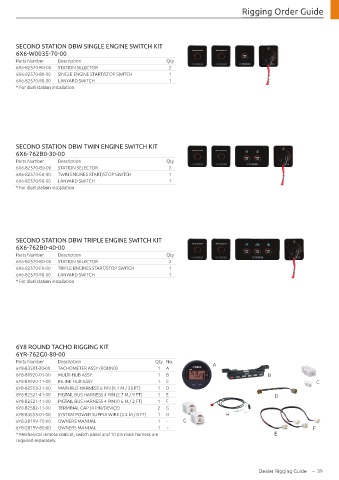

Rigging Order Guide

SECOND STATION DBW SINGLE ENGINE SWITCH KIT
6X6-W0035-70-00
Parts Number Description Qty
6X6-82570-B0-00 STATION SELECTOR 2
6X6-82570-80-00 SINGLE ENGINE START/STOP SWITCH 1
6X6-82570-90-00 LANYARD SWITCH 1
* For dual station installation

SECOND STATION DBW TWIN ENGINE SWITCH KIT
6X6-762B0-30-00
Parts Number Description Qty
6X6-82570-B0-00 STATION SELECTOR 2
6X6-82570-E0-00 TWIN ENGINES START/STOP SWITCH 1
6X6-82570-90-00 LANYARD SWITCH 1
* For dual station installation

SECOND STATION DBW TRIPLE ENGINE SWITCH KIT
6X6-762B0-40-00
Parts Number Description Qty
6X6-82570-B0-00 STATION SELECTOR 2
6X6-82570-F0-00 TRIPLE ENGINES START/STOP SWITCH 1
6X6-82570-90-00 LANYARD SWITCH 1
* For dual station installation

6Y8 ROUND TACHO RIGGING KIT
6YR-762G0-80-00
Parts Number Description Qty No. A
6Y8-8350T-20-00 TACHOMETER ASSY (ROUND) 1 A
6Y8-81920-01-00 MULTI-HUB ASSY 1 B B
6Y8-81920-11-00 INLINE HUB ASSY 1 C C
6Y8-82553-21-00 MAIN BUS HARNESS 6 PIN (6.1 M / 20 FT) 1 D
6Y8-82521-41-00 PIGTAIL BUS HARNESS 4 PIN (2.7 M / 9 FT) 1 E D
6Y8-82521-11-00 PIGTAIL BUS HARNESS 4 PIN (0.6 M / 2 FT) 1 F
6Y8-82582-11-00 TERMINAL CAP (4 PIN/DEVICE) 2 G
6Y8-83553-01-00 SYSTEM POWER SUPPLY WIRE (2.4 M / 8 FT) 1 H H
6Y8-2819V-70-00 OWNERS MANUAL 1 - G
6Y8-2819V-80-00 OWNERS MANUAL 1 - F
* Mechanical remote control, switch panel and 10 pin main harness are E
required separately.

Dealer Rigging Guide – 39
